Substrate

For sustainable ideas – Westag substrates. We are passionate about high-quality interior design. This is best conceived – and implemented – with our compound elements.

Substrate

For sustainable ideas – Westag substrates. We are passionate about high-quality interior design. This is best conceived – and implemented – with our compound elements.

Westag substrates: variety and quality for individual interior design with Getalit, FENIX & Getacore

The substrate is, of course, a decisive factor here, determining the application and thickness of the respective element. That's why our range offers a wide selection: six different substrates in up to 11 different thicknesses – from chipboard and MDF boards to a mineral substrate.

  • Wide selection of high-quality substrates: 6 substrates, 11 substrate thicknesses
  • For a wide variety of applications such as furniture fronts, partition walls and interior design

P2

P2 chipboard is the most common substrate used in interior design. Compound elements with P2 chipboard substrates can be processed using conventional woodworking tools and are both dimensionally stable and strong. This substrate offers the widest range of material thicknesses – many thicknesses are available between 8 mm and 38 mm.

Product highlights

  • 10 thicknesses from 8 mm to 38 mm
  • Suitable for compoound elements with HPL laminate, Getalit Endless, FENIX, Getacore or as a MFB element
  • High-quality chipboard according to EN 312

P2-FR

Product highlights

  • For vertical applications, the Westag Elements range offers melamine-faced compound elements. These are also available with a fire-retardant substrate.
  • For MFB elements

MDF

High-quality MDF board according to EN 622-5. Easy to work with and with low formaldehyde emissions, this board is ideal for furniture manufacturing or interior design. In combination with the MDF board, our high-gloss decors in particular achieve true perfection in terms of surface smoothness.

Product highlights

  • 2 thicknesses – 16 mm and 19 mm
  • Suitable for compound elements with HPL laminate, Getalit Endless, FENIX, Getacore or as a MFB element

MDF-FF

It is ideal for use in furniture manufacture or interior fitting: this high-quality MDF board, compliant with EN 622-5, is easy to work with and, thanks to its formaldehyde-free bonding, has even lower formaldehyde emissions.

Product Highlights

  • Suitable for compound elements with HPL laminate, Getalit Endless, FENIX, Getacore or as a directly coated element
  • Low emissions thanks to formaldehyde-free bonding

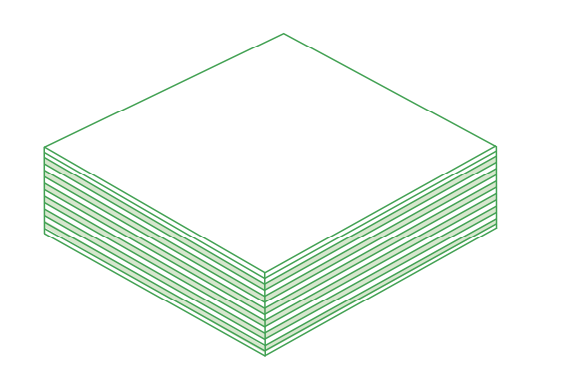

Type Multiplex

With its attractive appearance, it makes edges almost superfluous: the 17 mm multiplex support is mainly used in high-quality furniture construction and fittings. This creates elements with a modern and unusual look.

Product highlights

  • Thickness - 17 mm
  • Sanded and calibrated
  • Attractive decorative edge appearance
  • Suitable for compound elements with HPL laminate, Getalit Endless or FENIX

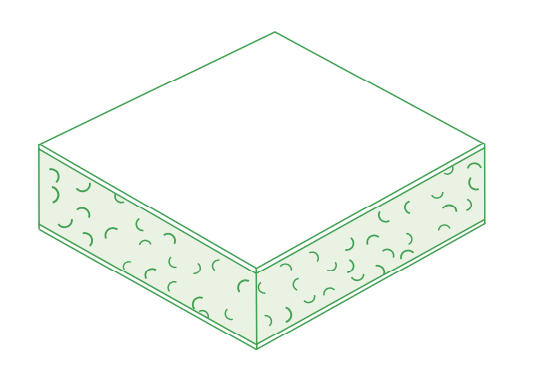

Type Mineral A1

High-quality interior design requires high-quality solutions. The 16 mm Mineral A1 carrier consists of a non-combustible gypsum fibre carrier board and is used precisely in areas where very high design standards are required.

Product highlights

  • Thickness – 16 mm
  • Calibrated gypsum fibreboard
  • Non-combustible substrate*
  • Suitable for compound elements with HPL laminate or Getalit Endless

*This information refers only to the substrate. A composite element is a non-tested element.

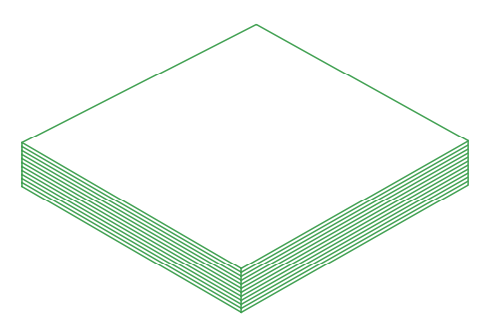

HPL compact sheet

The HPL compact laminate range offers a wide range of design options for interior designers. Excellent surface properties allow you to think outside the box and take an unusual approach to the design of edges and surfaces, which is why it is also known as the favourite material for technical users and designers. The homogeneous core structure of HPL compact laminates really shows what it can do in the Getalit Endless collection: here, large surfaces can be completely redesigned, because the large pattern repeat makes the marble decors of the Endless collection look natural and authentic. When used with a compact panel, they make an unbeatable team.

Product highlights

  • Over 170 designs
  • 6 thicknesses from 3 mm to 12 mm
  • Minimum order quantity: 1
  • Optimised cutting thanks to a length of 5,200 mm

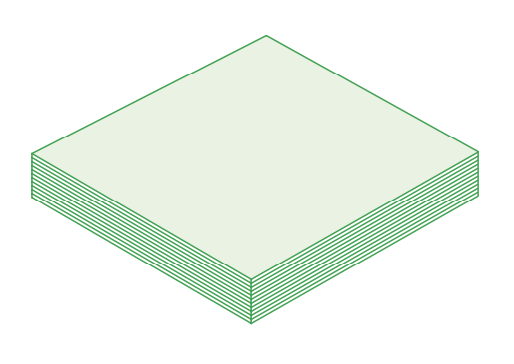

FENIX® Solid

Smart materials meet matt surfaces. Timeless, modern colours meet anti-fingerprint coating. Intelligent functionality meets decorative appearance. Our high-quality compact panel is particularly popular with architects. Due to the exclusivity of the material and its impressive properties, this variant deserves its own name: FENIX SOLID. Solid is no coincidence: it reflects the robustness and resistance of the material.

Product highlights

  • 34 NTM colours, 3 NTA colours
  • 5 thicknesses from 4 mm to 12 mm
  • Available with through-coloured core

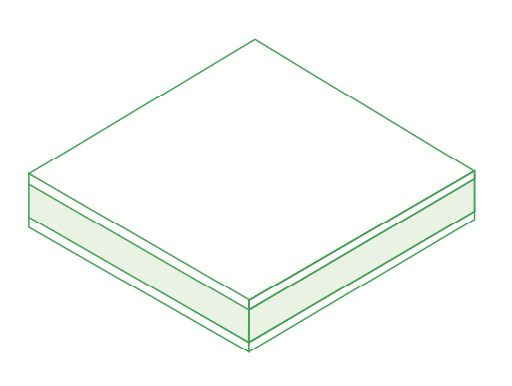

Getacore panel material

The Getacore panel materials Smart, Optimal, Classic, Classic Extra and 3Deep offer solutions for different areas. The standard large panel size optimises waste, reduces jointing and sanding work and lowers project costs.

Product highlights

  • Product highlights
  • 5 thicknesses from 3 mm to 20 mm
  • 17 different panel sizes
  • Customised decors, dimensions and thicknesses available for commercial projects



Getacore highlights

3Deep

3Deep technology adds an extra dimension to our solid surface material. Its extreme thermal formability allows for the smallest radii and maximum freedom in design. Whether it's delicate details in furniture design, the customisation of models such as washbasins – deep-drawn from a single sheet – or even bathtubs without sheet bonding: 3Deep makes it possible.

Veneto

Veneto decors are produced in small series with precise craftsmanship and great attention to detail – each slab is unique. The uneven grain gives this exclusive material its unique marble character. They can vary in intensity and colour. Mitred joints allow for a harmonious play of colours.

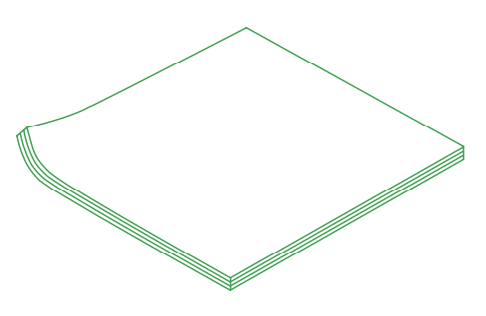

HPL-laminate

The HPL surface is characterised by its outstanding properties. It is a high-quality high-pressure laminate (HPL) that is manufactured under high heat and very high pressure. This creates surfaces that are particularly impact- and abrasion-resistant and uncompromisingly meet all high-quality requirements.

Produkt highlights

  • Over 200 designs
  • Matching designs with compact laminate, compound elements, worktops and window sills
  • High resilience, impact and scratch resistance, heat resistance and abrasion resistance according to EN 438
