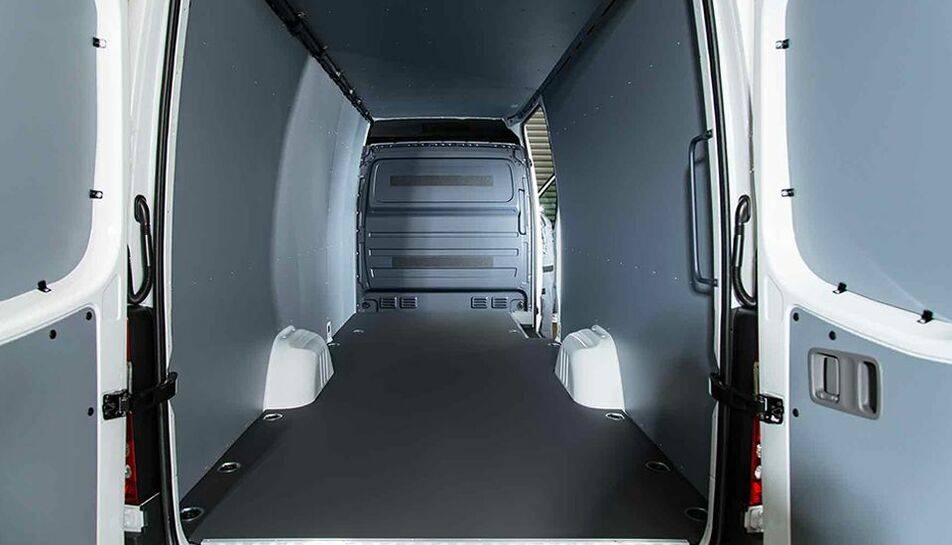

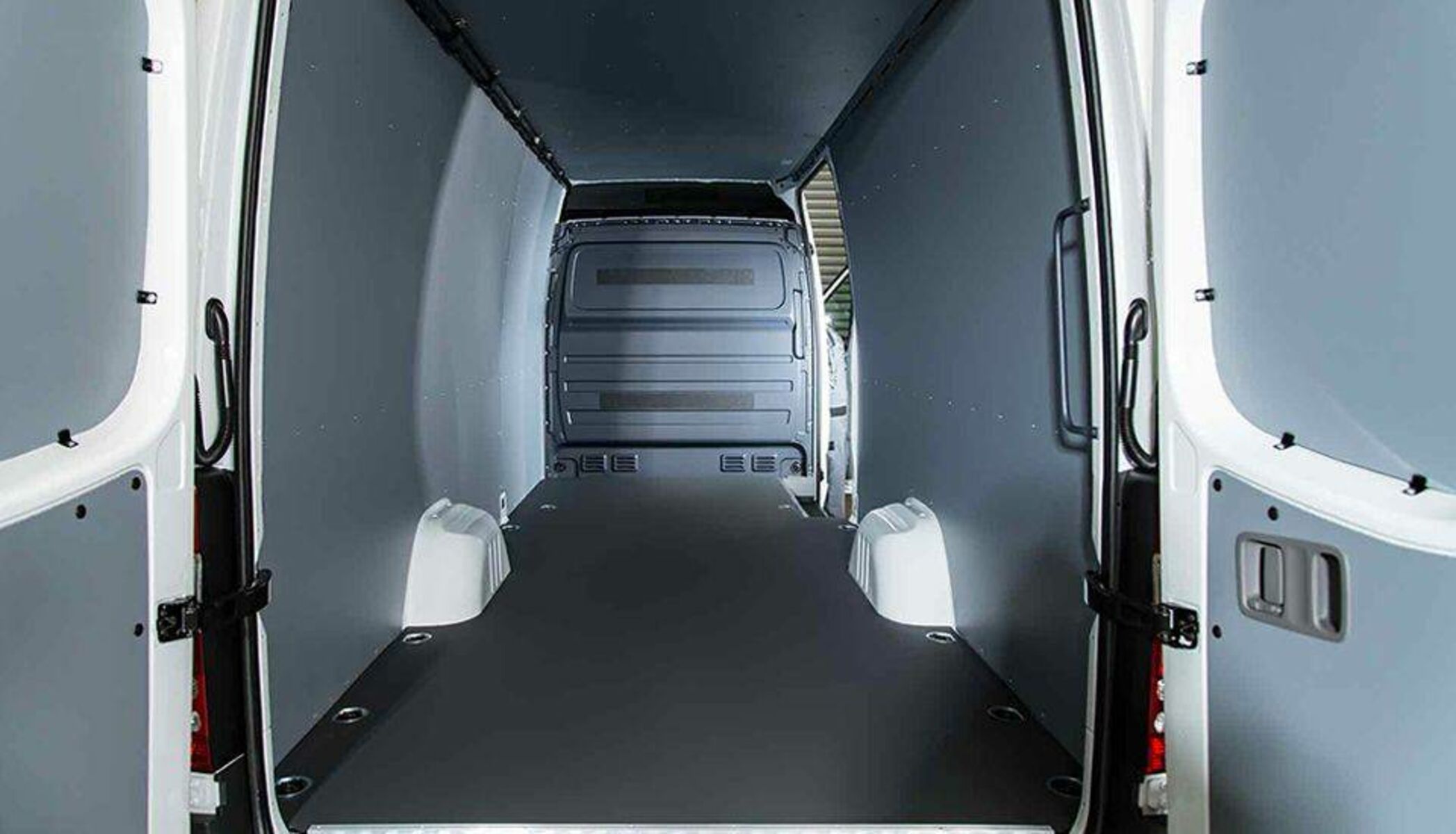

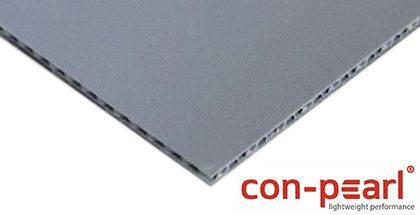

Our lightweight panel DECOPLAN® floor powered by Con-Pearl® is particularly suitable for interior decoration of transporters. The sealed surface of the plastic panel with hollow chambers is easy to clean. The material is also up to 100 percent recyclable With the high-quality, anti-slip and long-lasting plastic honeycomb panel, you are procuring a side panelling element whose shape and colour can be adapted perfectly to the vehicle interior.
| Technical data | Property | Unit | Value | Testing method | |||
|---|---|---|---|---|---|---|---|
| Weight per unit area | kg/m² | 1.7 +/- 0.05 | DIN EN 12127 | ||||
Decoplan Floor | Overall thickness | mm | 4.8 +/- 0.2 | DIN EN ISO 5084 | |||
| Tensile strength | N/50mm | >1800 | ISO 52-2 | ||||
| Bending strength at 3% stretching | N/50mm | >20 | 3-point bending test, interval between supports 140 mm, 20 mm/min | ||||
| Maximum bending strength (F max) | N/50mm | >67 | |||||
| Bending at F max | mm | <43 | |||||
| Burning rate | mm/min | <75 | DIN 75200 (FMVSS) | ||||
| Resistance to cold | °C | -10 | VW-PV3905: Ball-drop test (500, h=250mm) | ||||
Subject to design modifications. Attention: Reference values – these properties are not guaranteed. Subject to technical modifications.
To fix your side wall panelling securely. Recommended for the rear window area, among others.
To prevent breakage when installing your Westag side wall panelling.
