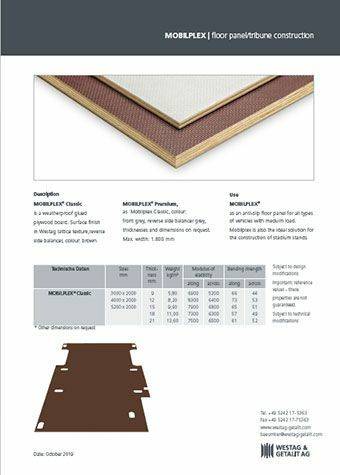

Our product “Mobilplex Classic” is a glued plywood board with a hardwood veneer and a brown screen film coating. The floor panel offers a high degree of anti-slip protection and is resistant to weather and abrasion. It is suitable for all vehicle types that are subjected to medium use. The board is also used in stadium construction.
An overview of the main properties and benefits of our “Mobilplex Classic” floor panel:
| Technical data | Dimensions in mm | Thickness mm | Weight kg/m² | Modulus of elasticity (N/mm²) | Bending strength (N/mm²) | ||
|---|---|---|---|---|---|---|---|
| along | across | along | across | ||||
| Mobilplex Classic | 3000 x 2000 4000 x 2000 5200 x 2000 | 9 12 15 18 21 | 5.80 8.20 9.90 11.00 13.60 | 6900 8300 7900 7300 7500 | 5200 6400 6800 6300 6500 | 66 73 65 57 61 | 44 53 51 49 52 |
Tolerances in accordance with DIN 68791 Subject to design modifications Attention Reference values – these properties are not guaranteed.
To be fitted to the original lashing point in the vehicle. For floor cutouts with a diameter of approx. 90 mm.
Protects you when getting in and out. Suitable for floor cutouts with a diameter of approx. 90 mm.
If you have any questions about Westag shuttering panels and how they are used, our service team will be happy to help you. Just click on the button below in order to open our contact form.
To the contact form
