Westaspan MF (melamine face) is suitable for all smooth, jointless concrete surfaces in accordance with DIN 18020/3, line 4/5. High number of reuses.
| Technical data | Dimensions in mm | Thickness mm | Weight kg/m² | Modulus of elasticity (N/mm²) | Bending strength (N/mm²) | ||
|---|---|---|---|---|---|---|---|
| along | across | along | across | ||||
| Westaspan | 4300 x 2000 5200 x 2000 5500 x 2000 5500 x 2500 | 21 | 15.5 | 4100 |
4100
| 25 | 25 |
Other thicknesses/coatings on request.
Subject to design modifications. Attention Reference values – these properties are not guaranteed.

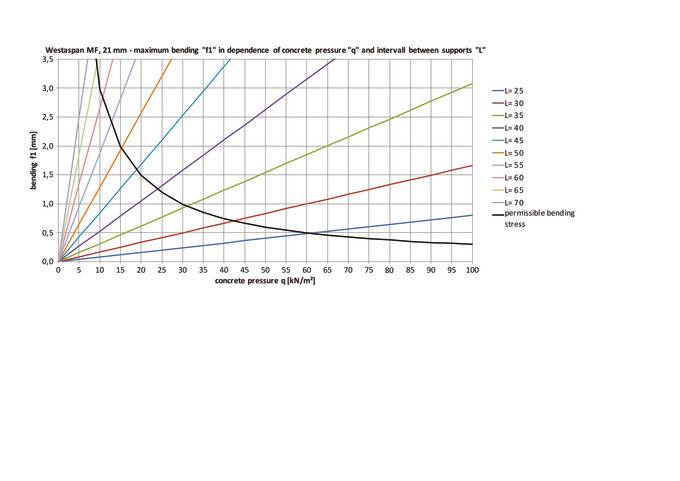

Technical advice: Area load calculated from pure concrete pressure without safety coefficients. Diagram applies to a 4-field beam, deflection in the outfield. Permissible bending stress = calculated with load safety factor 1.5 / load duration 0.9 / material safety 1.3. The technical data are mean values which may vary due to the natural fluctuations of the raw material wood.
Single-sided self-adhesive polyethylene-based joint tape approx. 19 mm wide and 3 mm thick. It is used to seal the joints between formwork panels. The roll length of the Westafill joint tape is 10 m.
The high-quality two-component epoxy resin filler is suitable for shuttering construction, particularly for use with all film-coated plywood formwork panels from Westag.
The ready-to-use single-component paint offers a high degree of abrasion resistance and impact resistance, as well as good resistance to chemicals. It is used as edge protection for shuttering panels made of wooden composites.
If you have questions on the “Westaspan MF” supersize formwork panel or desire additional information, you can get in touch with our skilled contacts directly. The experienced service team at Westag AG will look after your query as quickly as possible. You can reach the contact data by clicking the button below.
