Westaspan 300 is suitable for all smooth, jointless concrete surfaces in accordance with DIN 18020/3, line 4/5. Limited number of reuses.
| Technical data | Dimensions in mm | Thickness mm | Weight kg/m² | Modulus of elasticity (N/mm²) | Bending strength (N/mm²) | ||
|---|---|---|---|---|---|---|---|
| along | across | along | across | ||||
| Westaspan 300 | 5500 x 2000 5500 x 2000 2500 x 1250 | 18 21 20 | 13 14.5 14 | 3700 3700 3700 | 3700 3700 3700 | 17 17 17 | 17 17 17 |
Dimensions pre-edged (approx. specification)
Subject to design modifications. Attention Reference values – these properties are not guaranteed.

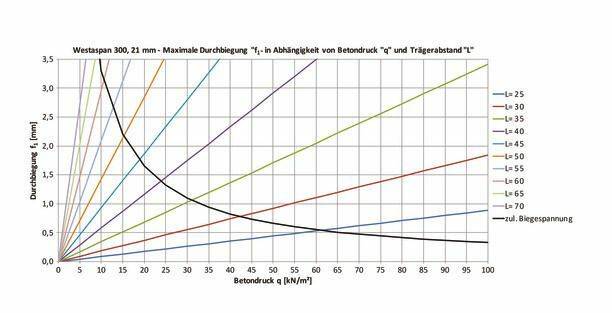

Technical advice: Area load calculated from pure concrete pressure without safety coefficients. Diagram applies to a 4-field beam, deflection in the outfield. Permissible bending stress = calculated with load safety factor 1.5 / load duration 0.9 / material safety 1.3. The technical data are mean values which may vary due to the natural fluctuations of the raw material wood.
If you would like additional information on our cost-effective supersize formwork panel “Westaspan 300”, just get in touch with the Westag AG service team. Our skilled contact persons will be happy to advise you either in writing or by telephone. Just click on the button below in order to call up the contact data.
To contact
