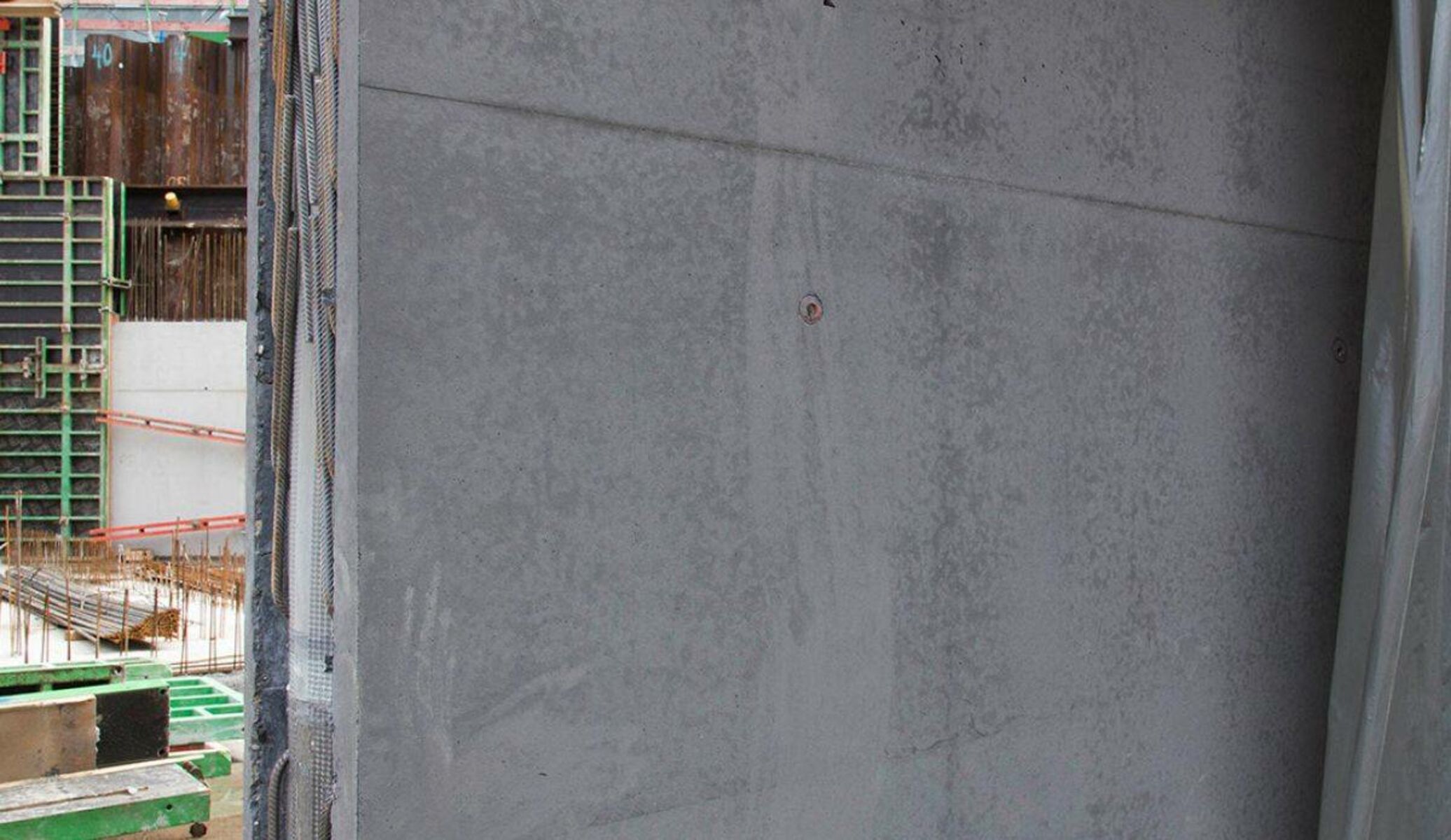

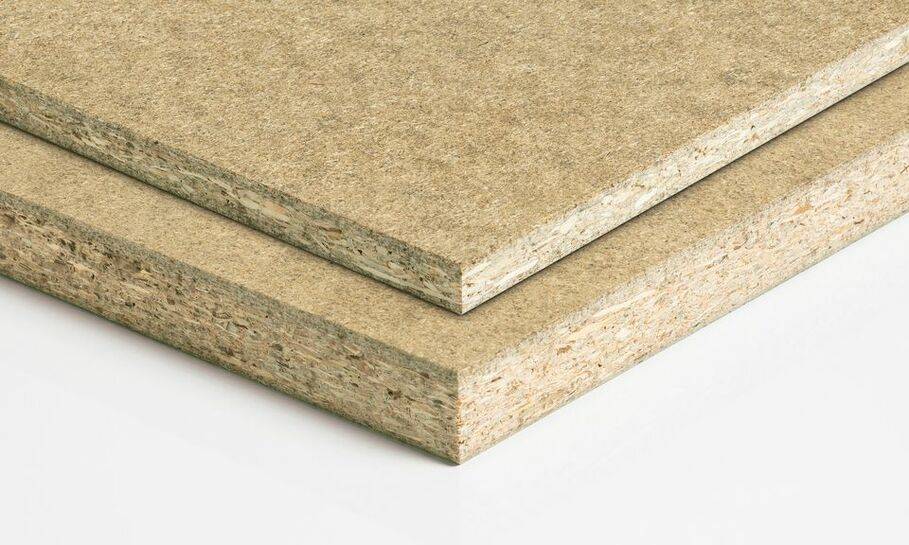

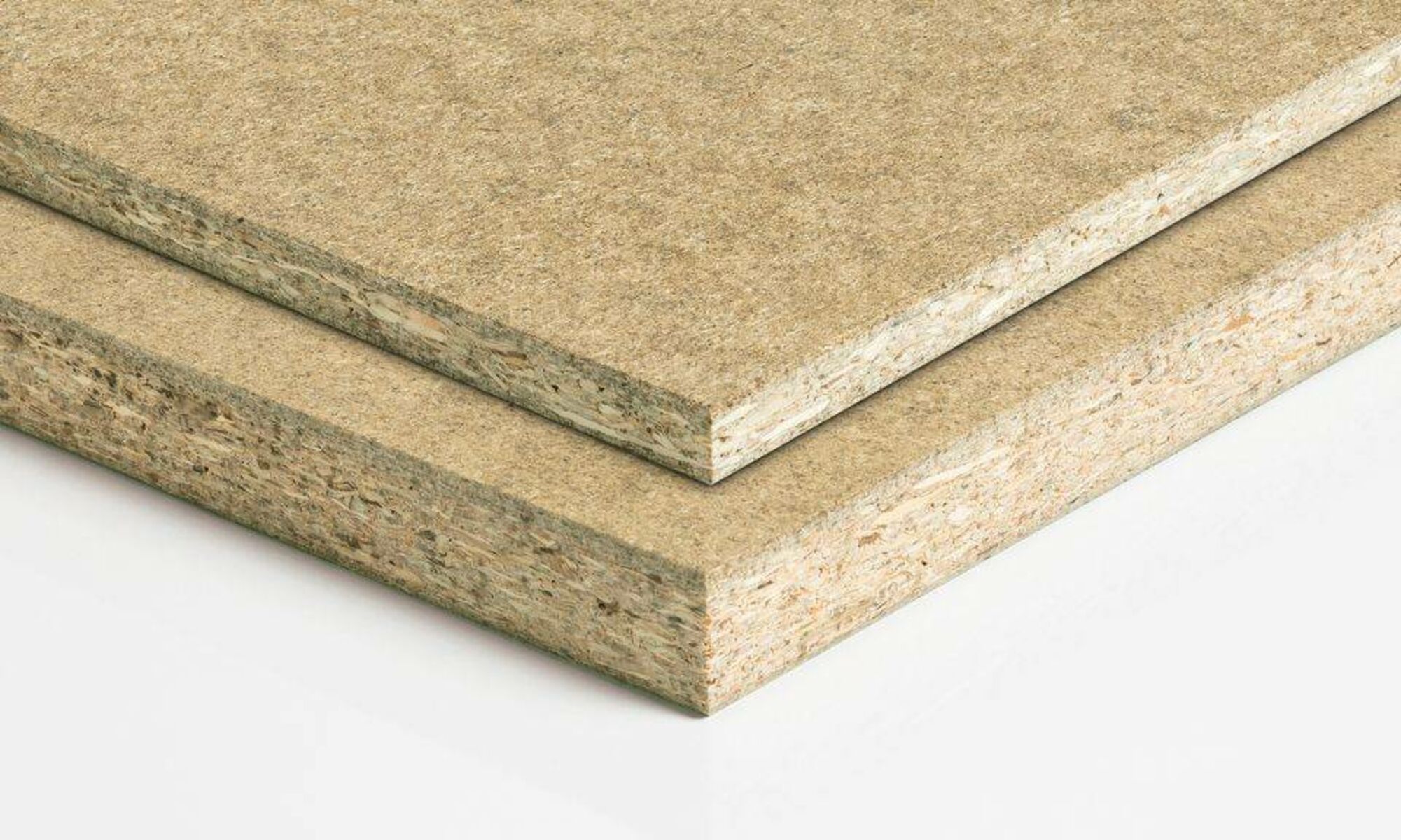

RS Special, oiled for low-pore concrete surfaces with increased rim strength. Suitable for use in sewage treatment plants, water containers, and bridge building. The 10 mm thick panel is suitable for round formwork with a radius of more than 1.5 m.
An overview of the main properties and benefits of our “RS Special, oiled” shuttering board:
| Technical data | Dimensions in mm | Thickness mm | Weight kg/m² | Modulus of elasticity (N/mm²) | Bending strength (N/mm²) | ||
|---|---|---|---|---|---|---|---|
| along | across | along | across | ||||
| RS Special, oiled | 5430/2710 x 2050 | 10 21 27 | 7.8 16.5 21.50 | 4000 4500 4000 | 4000 4500 4000 | 27 30 26 | 27 30 26 |
Dimensions pre-edged (approx. specification)
Subject to design modifications. Attention Reference values – these properties are not guaranteed.

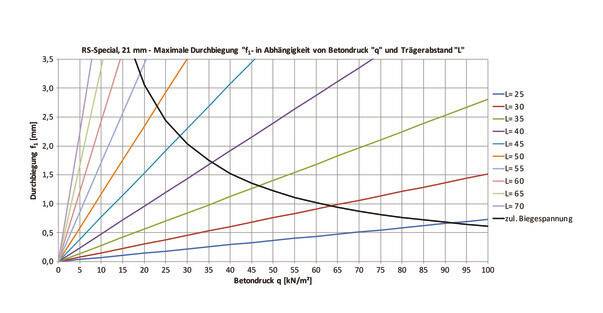

Technical advice: Area load calculated from pure concrete pressure without safety coefficients. Diagram applies to a 4-field beam, deflection in the outfield. Permissible bending stress = calculated with load safety factor 1.5 / load duration 0.9 / material safety 1.3. The technical data are mean values which may vary due to the natural fluctuations of the raw material wood.
Single-sided self-adhesive polyethylene-based joint tape approx. 19 mm wide and 3 mm thick. It is used to seal the joints between formwork panels. The roll length of the Westafill joint tape is 10 m.
The high-quality two-component epoxy resin filler is suitable for shuttering construction, particularly for use with all film-coated plywood formwork panels from Westag.
The ready-to-use single-component paint offers a high degree of abrasion resistance and impact resistance, as well as good resistance to chemicals. It is used as edge protection for shuttering panels made of wooden composites.
Would you like further information about the supersize formwork panel “RS Special, oiled”? Just contact our service team, who will be happy to advise you in writing or by telephone. The button below will take you to the contact data for the experienced contact persons at Westag AG. Your questions will be answered as quickly as possible.
