Phenox special 200/360 – supersize formwork panel made of highly compacted wooden composite substrate

Phenox Special is suitable for all smooth, jointless concrete surfaces in accordance with DIN 18202/3 line 5/6 with higher requirements.

An overview of the main properties and benefits of our “Phenox special 200/360” shuttering board:

  • Supersize formwork panel made of highly compacted, wooden composite substrate
  • Melamine resin film coating 200 g/m² (beige), 360 g/m² (grey) or 450 g/m² (MF) on each side
  • Sealed edges

Technical dataDimensions mmThickness mmWeight kg/m²Modulus of elasticityBending strength modulus of elasticity
    alongacrosslengthacross
Phenox MF5400 x 200010**7,8400040002727
Phenox Special 2005400x2000

19

21

14.9

16.5

4000

4500

4000

4500

27

30

27

30

Phenox Special 360

5400x2000

5400x2000

21

27*

16.5

21.5

4500

4000

4500

4000

30

26

30

26

*on request / **coating comes up to Westaspan MF (450 g/m²)
Subject to design modifications. Attention Reference values – these properties are not guaranteed.

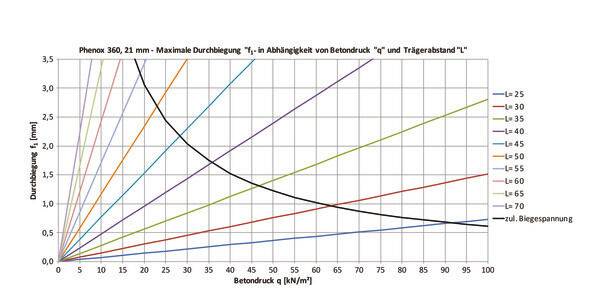

Diagram for bending estimation

Technical advice: Area load calculated from pure concrete pressure without safety coefficients. Diagram applies to a 4-field beam, deflection in the outfield. Permissible bending stress = calculated with load safety factor 1.5 / load duration 0.9 / material safety 1.3. The technical data are mean values which may vary due to the natural fluctuations of the raw material wood.
