An overview of the main properties and benefits of our “Phenox NFO 500” shuttering board:
| Technical data | Dimensions in mm | Thickness mm | Weight kg/m² | Modulus of elasticity (N/mm²) | Bending strength (N/mm²) | ||
|---|---|---|---|---|---|---|---|
| along | across | along | across | ||||
| Phenox NFO 500 | 5430 x 2050 5430 x 2050 | 21 27 | 16.5 21.5 | 4500 4000 | 4500 4000 | 30 26 | 30 26 |
Other thicknesses on request, dimension pre-edged, approx. specification.
Subject to design modifications. Attention Reference values – these properties are not guaranteed.

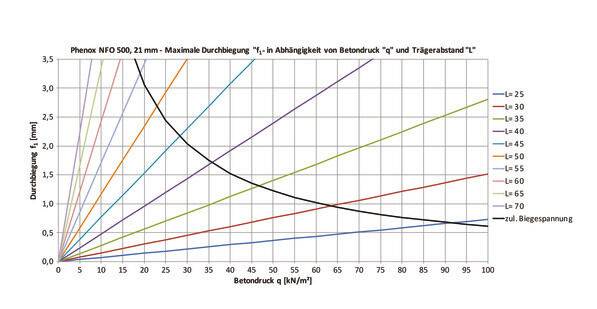

Technical advice: Area load calculated from pure concrete pressure without safety coefficients. Diagram applies to a 4-field beam, deflection in the outfield. Permissible bending stress = calculated with load safety factor 1.5 / load duration 0.9 / material safety 1.3. The technical data are mean values which may vary due to the natural fluctuations of the raw material wood.
