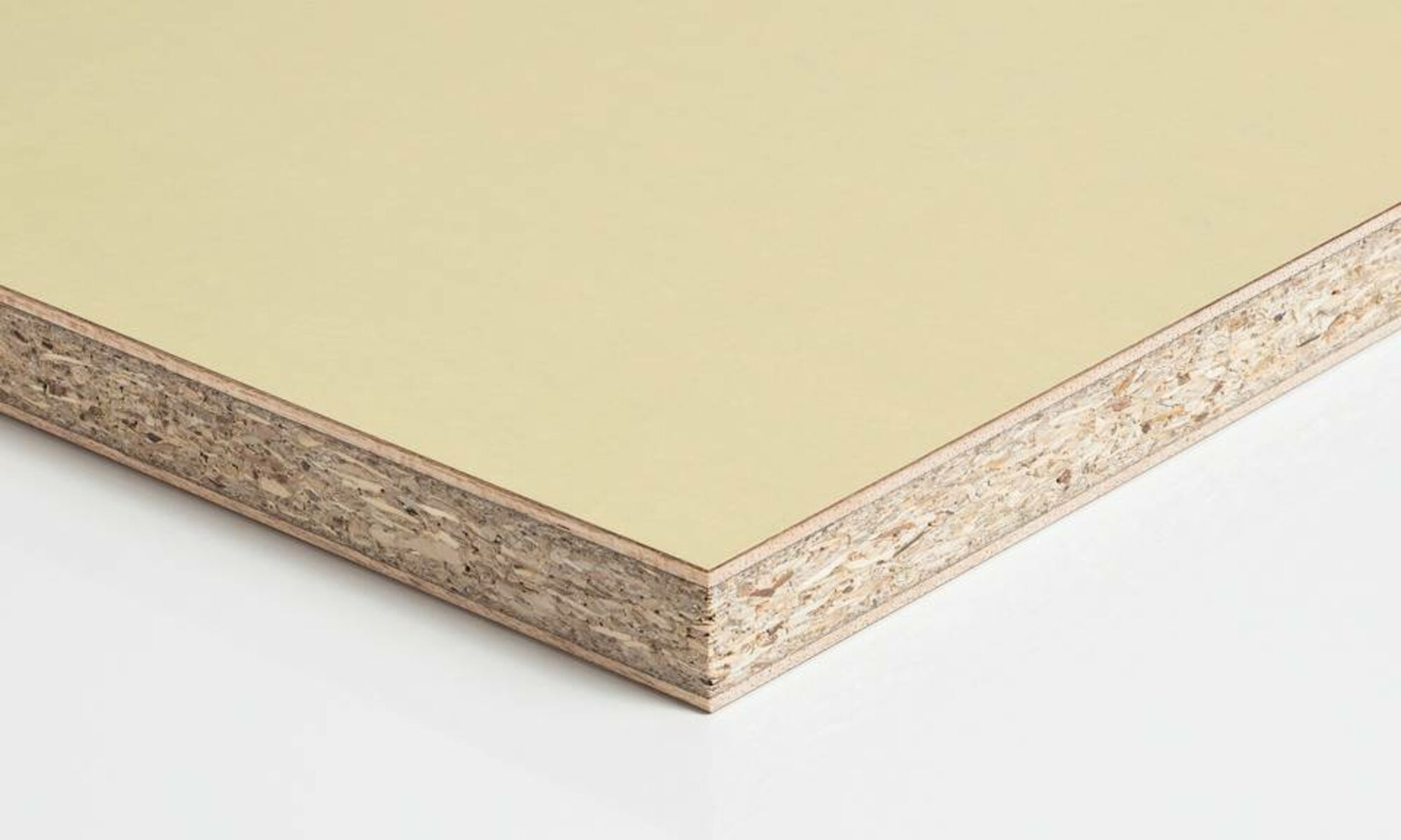

Magnoply MF – shuttering board with alkali-resistant melamine resin coating

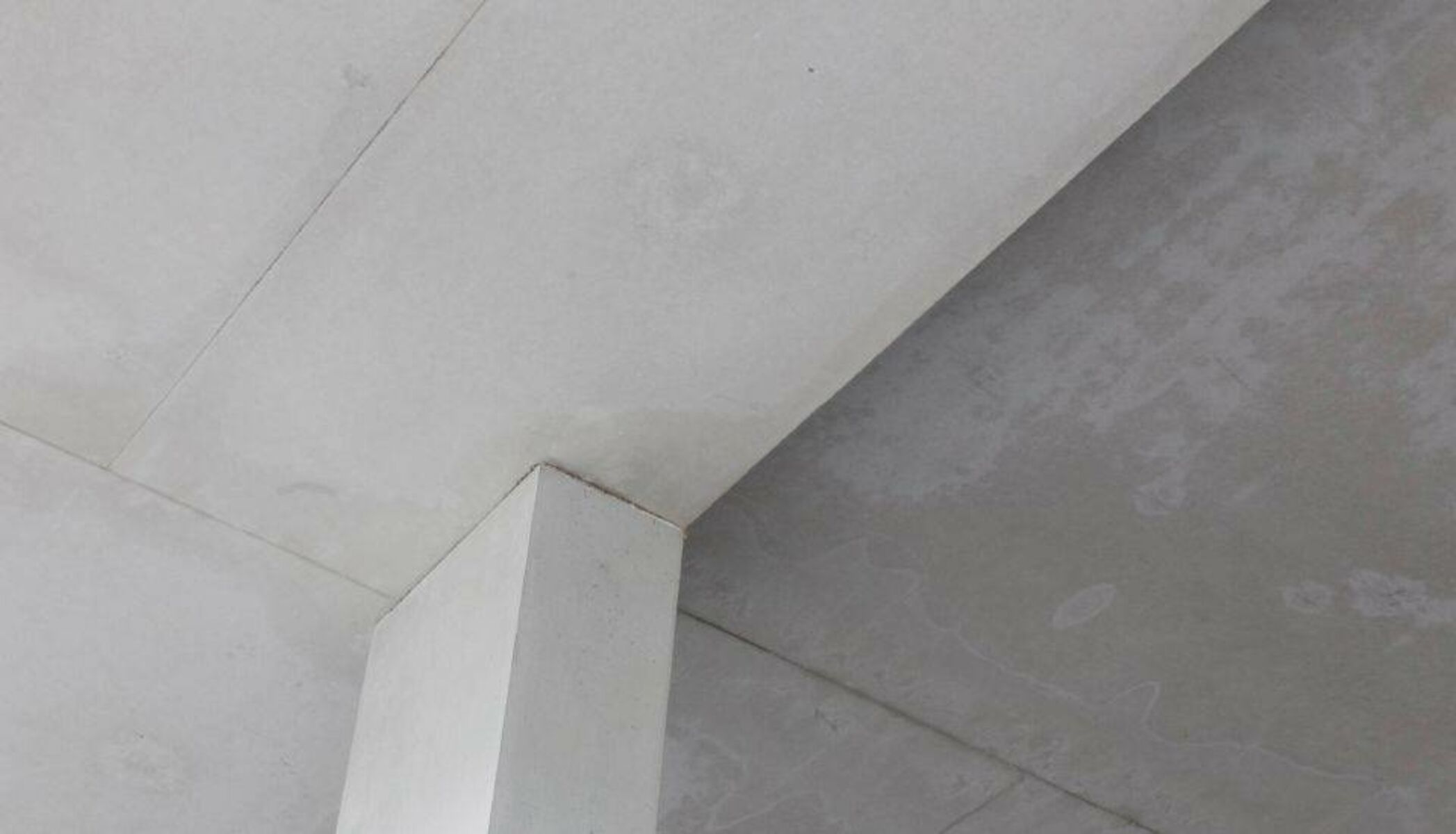

Magnoply MF (melamine face) is suitable for smooth, jointless concrete surfaces in accordance with DIN 18202/3, line 5/6. It can be used to produce matt, even surfaces. The special alkali-resistant, melamine surface coating features reduced water permeability, increased light resistance and improved robustness.

An overview of the main properties and benefits of our “Magnoply MF” shuttering board:

  • 3-ply supersize formwork panel made of a wooden composite substrate and a 2 mm thick veneer facing on each side
  • Melamine resin film coating 550 g/m² on each side
  • Sealed edges
  • Alkali-resistant surface
  • Significantly reduced water permeability
  • Increased light resistance

Technical dataDimensions in mmThickness mmWeight kg/m²Modulus of elasticity (N/mm²)Bending strength (N/mm²)
Magnoply MF

2000 x 5200







Tolerances in accordance with DIN 68791. Subject to design modifications. Attention Reference values – these properties are not guaranteed.

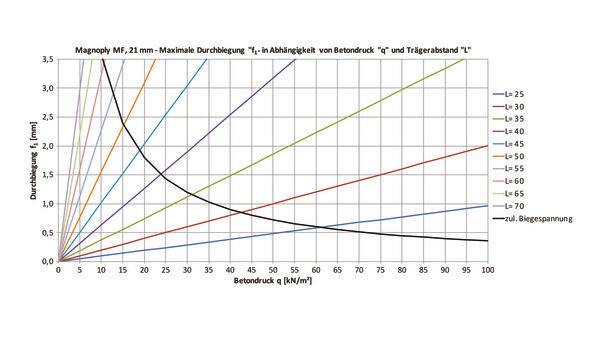

Technical advice: Area load calculated from pure concrete pressure without safety coefficients. Diagram applies to a 4-field beam, deflection in the outfield. Permissible bending stress = calculated with load safety factor 1.5 / load duration 0.9 / material safety 1.3. The technical data are mean values which may vary due to the natural fluctuations of the raw material wood.

Westafill joint tape

Single-sided self-adhesive polyethylene-based joint tape approx. 19 mm wide and 3 mm thick. It is used to seal the joints between formwork panels. The roll length of the Westafill joint tape is 10 m.

Westafill special filler resin

The high-quality two-component epoxy resin filler is suitable for shuttering construction, particularly for use with all film-coated plywood formwork panels from Westag.

Westafill special lacquer

The ready-to-use single-component paint offers a high degree of abrasion resistance and impact resistance, as well as good resistance to chemicals. It is used as edge protection for shuttering panels made of wooden composites.
