Betoplan Top – supersize formwork panel with phenolic resin film coating

Betoplan Top is very suitable for all smooth, jointless concrete surfaces with advanced requirements in accordance with DIN 18202/3, line 7 (SB4). With a high number of reuses, this panel is used to produce incredibly even matt concrete surfaces on building sites and in precast concrete plants. The panel can be subjected to both longitudinal and transverse loads.

An overview of the main properties and benefits of our “Betoplan Top” shuttering board.

  • Supersize formwork panel made of veneered plywood based on DIN 68792
  • Dimensions up to 6000 × 2500 mm
  • Extensive range of stock
  • Phenolic resin film coating 550 g/m² on each side
  • Sealed edges
  • To achieve SB 3/4, test pouring of the concrete is required

Technical dataDimensions in mmThickness mmWeight kg/m²Modulus of elasticity (N/mm²)Bending strength (N/mm²)
    alongacrossalongacross
Betoplan Top

2500 x 1250

3000 x 2000

4000 x 2000

5200 x 2000

5200 x 2000

21

21

21

21

27

13.5

13.5

13.5

13.5

16.8

7500

7500

7500

7500

7000

6500

6500

6500

6500

6400

56

56

56

56

54

46

46

46

46

48

Other thicknesses, dimensions and cuts on request.
Test according to EN310. Subject to design modifications. Attention Reference values – these properties are not guaranteed.

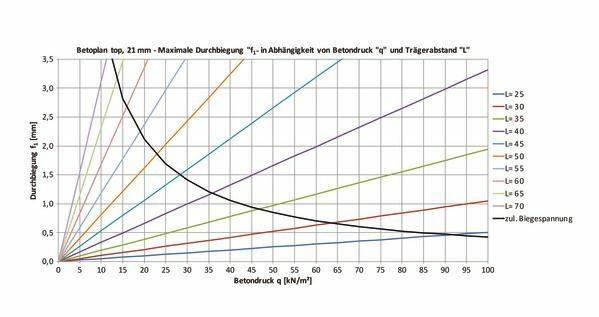

Diagram for bending estimation

Technical advice: Area load calculated from pure concrete pressure without safety coefficients. Diagram applies to a 4-field beam, deflection in the outfield. Permissible bending stress = calculated with load safety factor 1.5 / load duration 0.9 / material safety 1.3. The technical data are mean values which may vary due to the natural fluctuations of the raw material wood.
