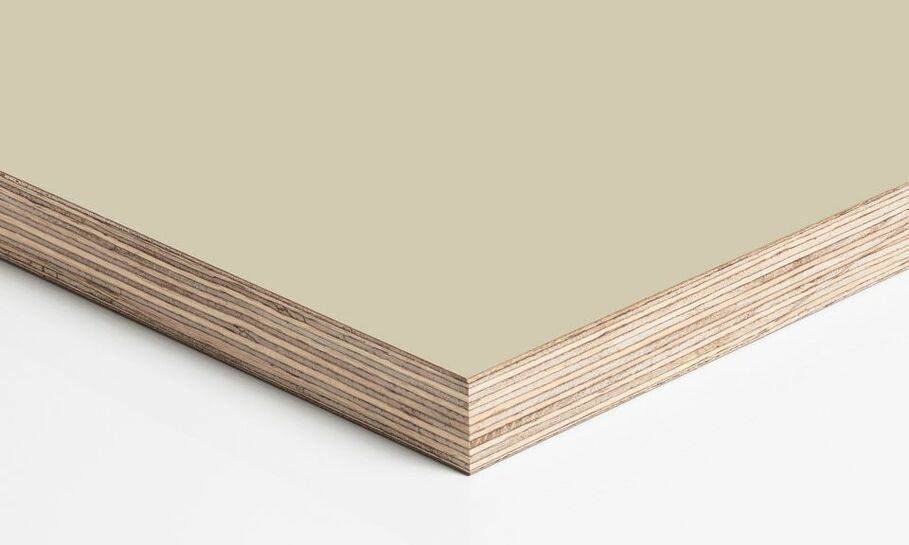

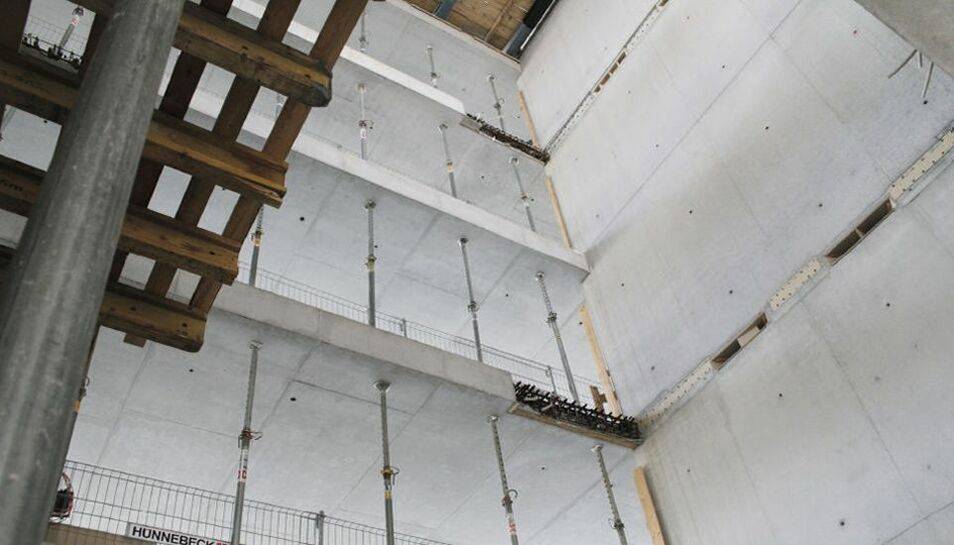

Betoplan Top MF (melamine face) is very suitable for all smooth, jointless concrete surfaces with higher requirements in accordance with DIN 18202/3, line 7 (SB4). With a high number of reuses, this panel is used to produce incredibly even matt concrete surfaces on building sites and in precast concrete plants. The panel can be subjected to both longitudinal and transverse loads.
An overview of the main properties and benefits of our “Betoplan Top MF” shuttering board.
| Technical data | Dimensions in mm | Thickness mm | Weight kg/m² | Modulus of elasticity (N/mm²) | Bending strength (N/mm²) | ||
|---|---|---|---|---|---|---|---|
| along | across | along | across | ||||
| Betoplan Top MF | 4000 x 2000 5200 x 2000 5500 x x2500 | 21 21 21 | 13.5 13.5 13,5 | 7500 7500 7500 | 6500 6500 6500 | 56 56 56 | 46 46 46 |
Other thicknesses, dimensions and cuts on request
Test according to EN310. Subject to design modifications. Attention Reference values – these properties are not guaranteed.

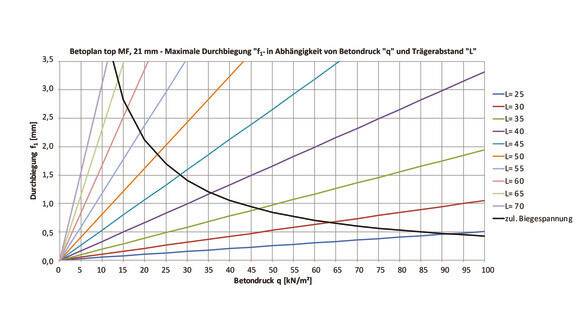

Technical advice: Area load calculated from pure concrete pressure without safety coefficients. Diagram applies to a 4-field beam, deflection in the outfield. Permissible bending stress = calculated with load safety factor 1.5 / load duration 0.9 / material safety 1.3. The technical data are mean values which may vary due to the natural fluctuations of the raw material wood.
Single-sided self-adhesive polyethylene-based joint tape approx. 19 mm wide and 3 mm thick. It is used to seal the joints between formwork panels. The roll length of the Westafill joint tape is 10 m.
The high-quality two-component epoxy resin filler is suitable for shuttering construction, particularly for use with all film-coated plywood formwork panels from Westag.
The ready-to-use single-component paint offers a high degree of abrasion resistance and impact resistance, as well as good resistance to chemicals. It is used as edge protection for shuttering panels made of wooden composites.
