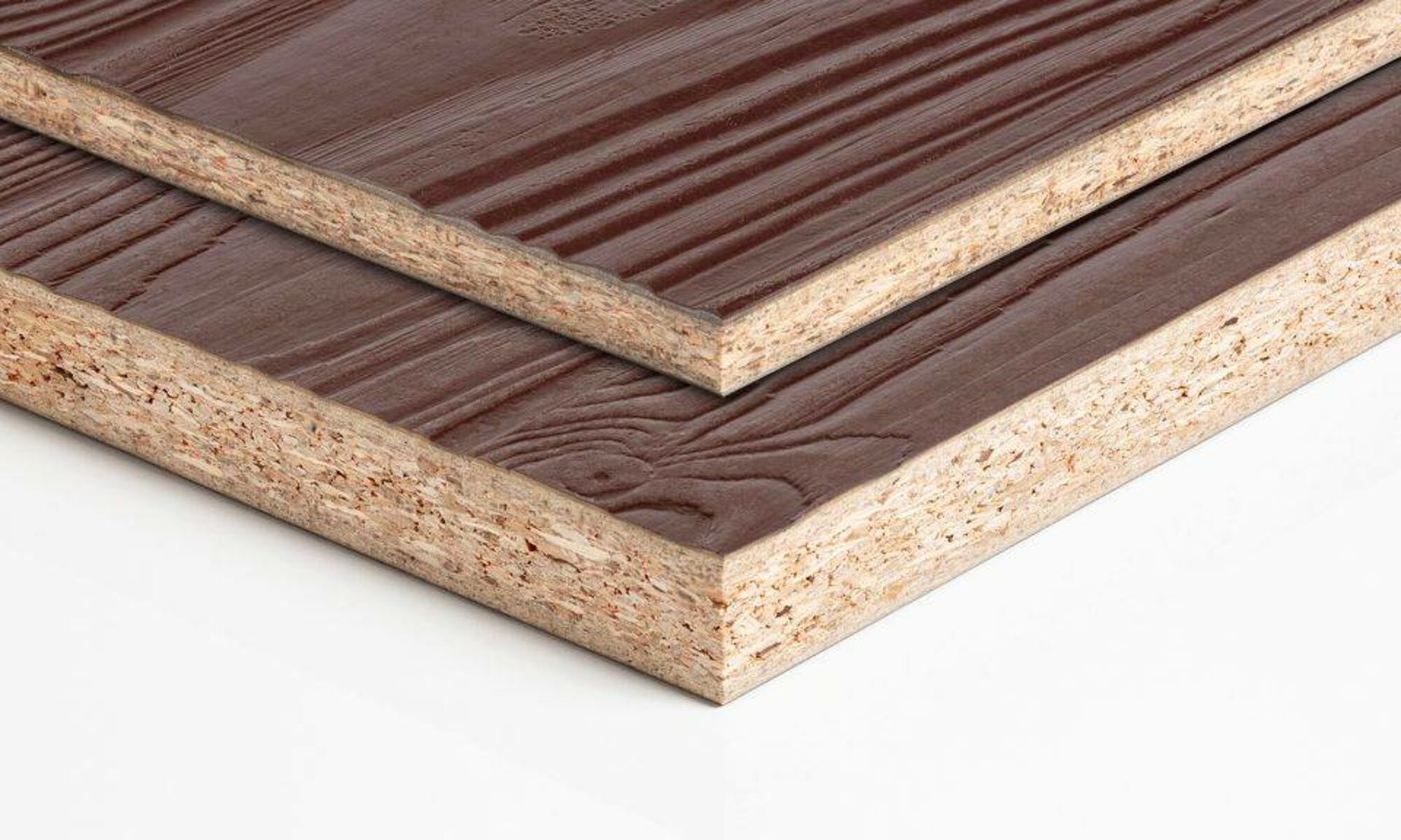

Struktospan Special – textured shuttering panel with wear-resistant phenolic resin coating

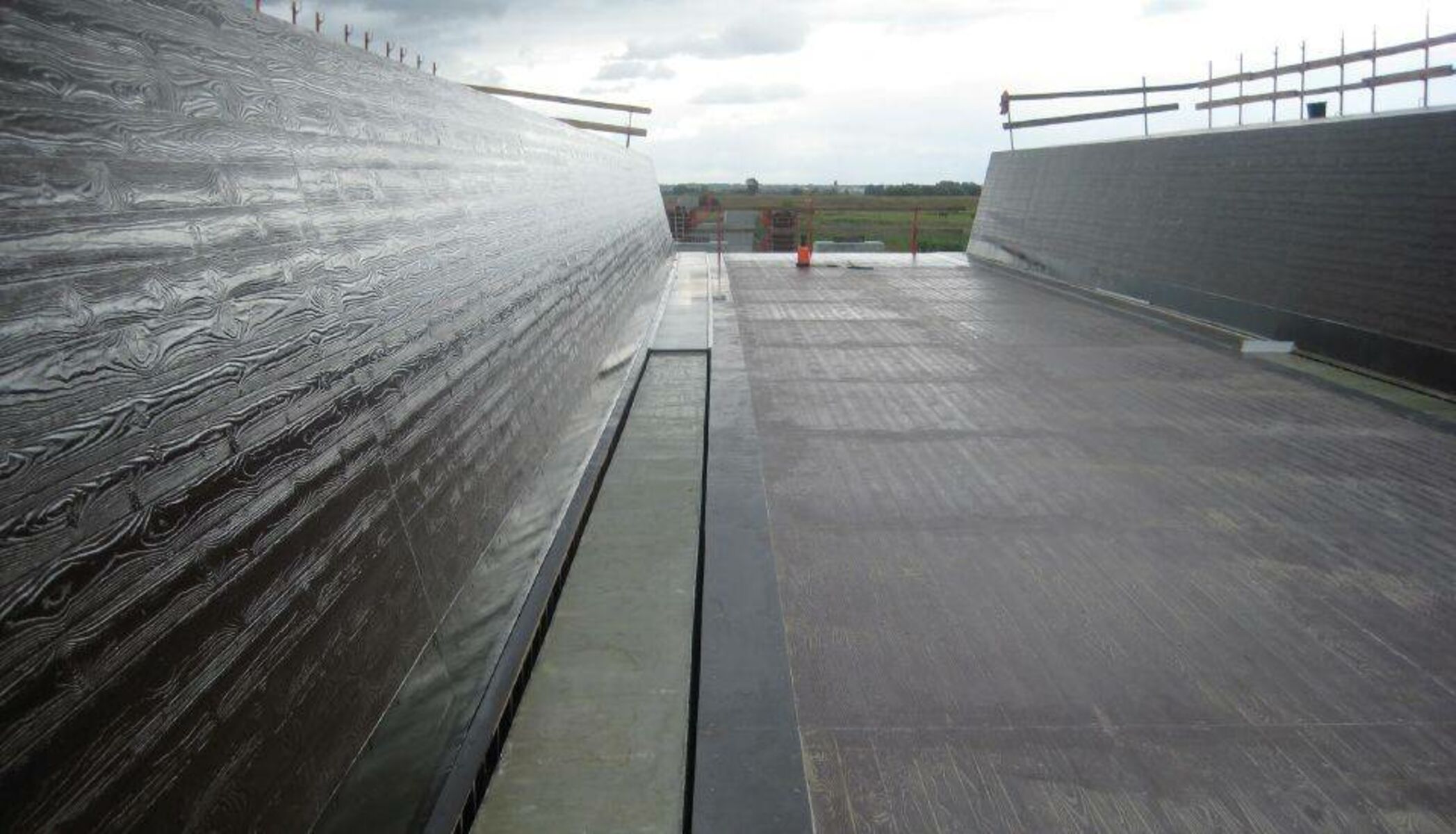

Struktospan Special is suitable for textured concrete surfaces with a board-like texture (10 cm wide). With a high number of reuses, a consistent, uniformly coloured, sand-free concrete finish can be achieved.

An overview of the main properties and benefits of our “Struktospan Special RS” shuttering board:

  • Supersize formwork panel made of highly compacted wooden composite substrate
  • Wear-resistant, phenolic resin film coating 1300 g/m² on each side
  • With a distinctive board-like texture

Technical dataDimensions in mmThickness mmWeight kg/m²Modulus of elasticity (N/mm²)Bending strength (N/mm²)
Struktospan Special RS

5000* x 1800













* Diection of grain
Attention Reference values – these properties are not guaranteed.

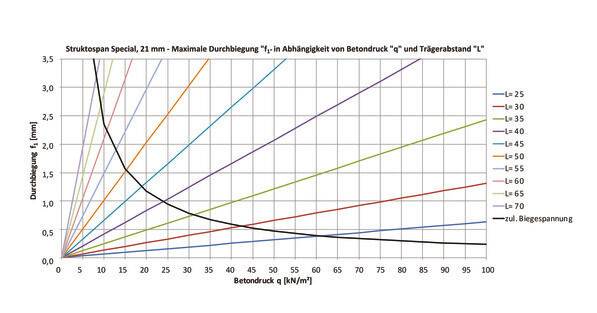

Diagram for bending estimation

Technical advice: Area load calculated from pure concrete pressure without safety coefficients. Diagram applies to a 4-field beam, deflection in the outfield. Permissible bending stress = calculated with load safety factor 1.5 / load duration 0.9 / material safety 1.3. The technical data are mean values which may vary due to the natural fluctuations of the raw material wood.

Westafill joint tape

Single-sided self-adhesive polyethylene-based joint tape approx. 19 mm wide and 3 mm thick. It is used to seal the joints between formwork panels. The roll length of the Westafill joint tape is 10 m.

Westafill special filler resin

The high-quality two-component epoxy resin filler is suitable for shuttering construction, particularly for use with all film-coated plywood formwork panels from Westag.

Westafill special lacquer

The ready-to-use single-component paint offers a high degree of abrasion resistance and impact resistance, as well as good resistance to chemicals. It is used as edge protection for shuttering panels made of wooden composites.
