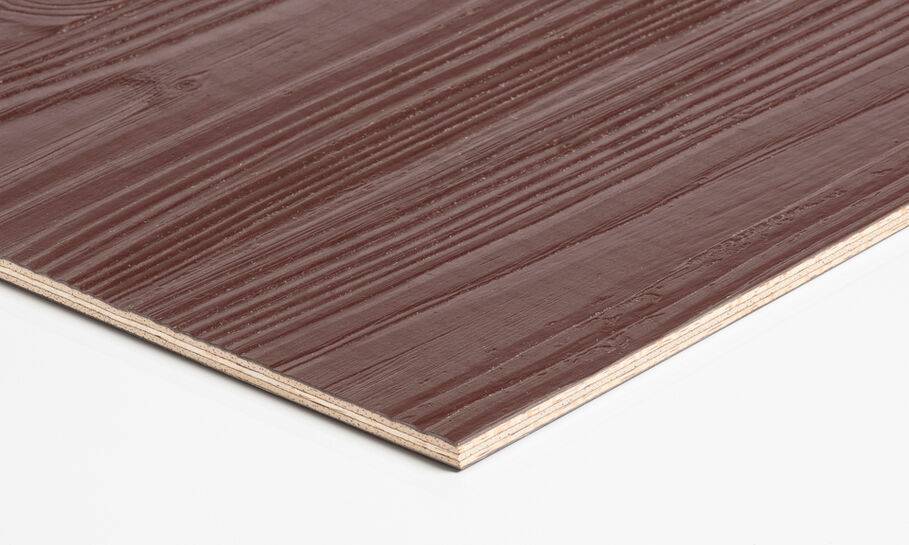

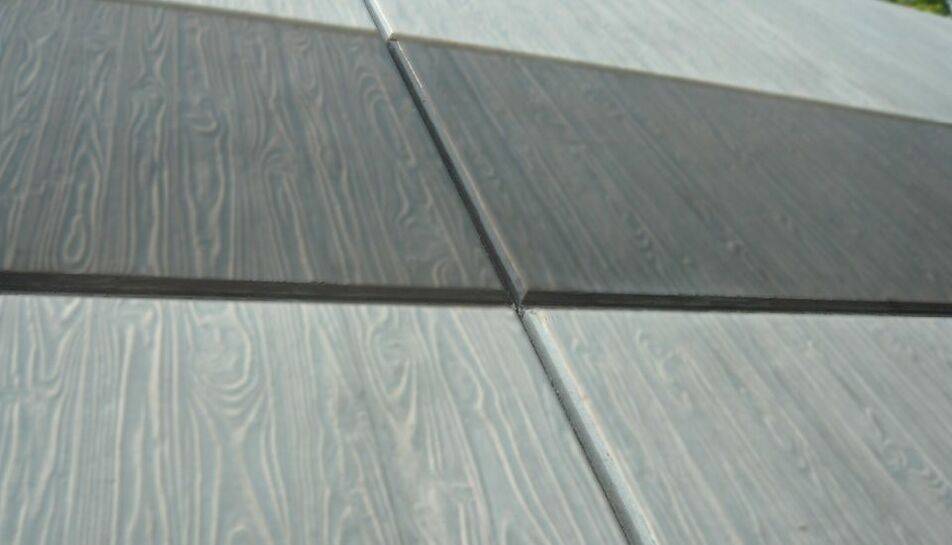

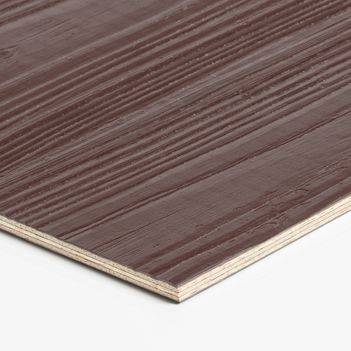

Struktoplan Special is suitable for textured concrete surfaces with a 10 cm wide, board-like texture and uniformly coloured, sand-free concrete finish. A high number of reuses can be achieved with a consistent board-like texture.
| Technical data | Dimensions in mm | Thickness mm | Weight kg/m² | Modulus of elasticity (N/mm²) | Bending strength (N/mm²) | ||
|---|---|---|---|---|---|---|---|
| along | across | along | across | ||||
Struktoplan Special | 3000* x 1200 | 5.5 | 4.0 | 10000 | 5200 | 107 | 59 |
*Direction of grain
Test according to EN310. Subject to design modifications. Attention Reference values – these properties are not guaranteed.
The technical data are mean values which may vary due to the natural fluctuations of the raw material wood.
