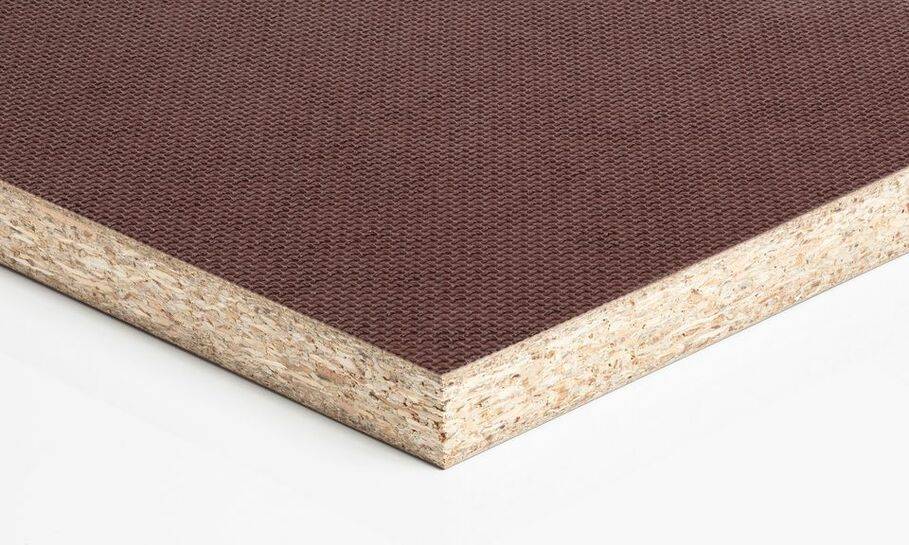

Betosieb HWS – textured shuttering board made of a special wooden composite substrate

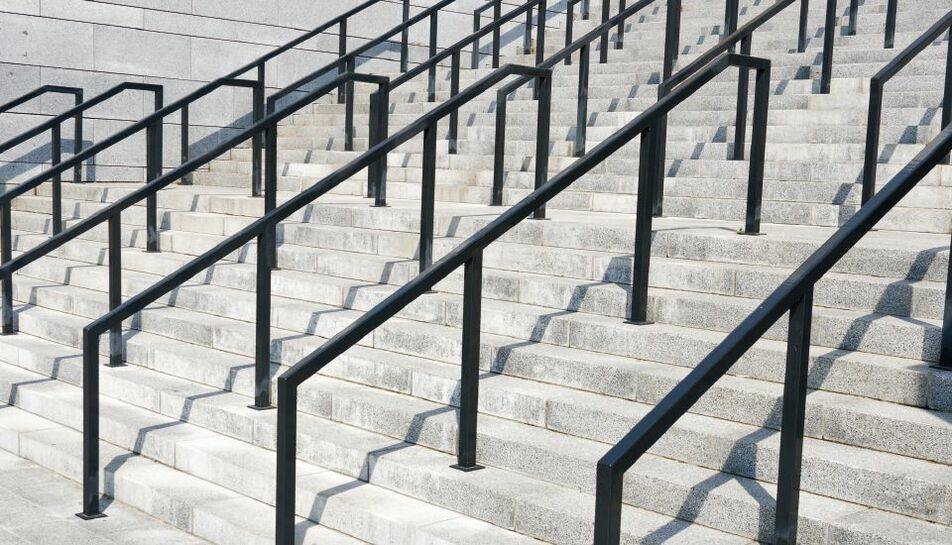

Betosieb HWS is suitable for all concrete surfaces where an anti-slip surface is required, such as on stadium steps, platforms, or concrete surfaces with increased adhesion for subsequent sealing. Can be subjected to both longitudinal and transverse loads.

An overview of the main properties and benefits of our “Betosieb HWS” shuttering board:

  • Supersize formwork panel
  • Special wooden composite substrate
  • Phenolic resin film coating 300 g/m² on each side
  • Front: Westag lattice texture
  • Back: smooth
  • Anti-slip concrete surface R13
  • Sealed edges

Technical dataDimensions in mmThickness mmWeight kg/m²Modulus of elasticity (N/mm²)Bending strength (N/mm²)
    alongacrossalongacross
Betosieb HWS

5200 x 2000

21

15.5

4100

4100

25

25

For production-related reasons, the surfaces may have slight optical differences
Subject to design modifications. Attention Reference values – these properties are not guaranteed.

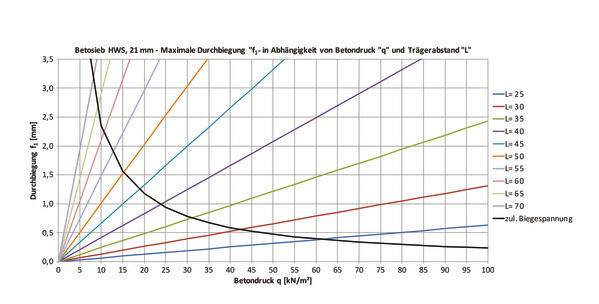

Diagram for bending estimation

Technical advice: Area load calculated from pure concrete pressure without safety coefficients. Diagram applies to a 4-field beam, deflection in the outfield. Permissible bending stress = calculated with load safety factor 1.5 / load duration 0.9 / material safety 1.3. The technical data are mean values which may vary due to the natural fluctuations of the raw material wood.
