Magnoplan Universal – shuttering board for particularly even surfaces

Magnoplan Universal is suitable for smooth, jointless concrete surfaces with advanced requirements in accordance with DIN 18202/3, line 7. It will produce incredibly even matt concrete surfaces. The number of reuses makes this a popular choice on building sites and in precast concrete plants. The panel can also be subjected to both longitudinal and transverse loads.

An overview of the main properties and benefits of our “Magnoplan Universal” shuttering board:

  • Supersize formwork panel made of 3-ply laminboard based on DIN 68791
  • Phenolic resin film coating 550 g/m² on each side
  • Sealed edges

Technical dataDimensions in mmThickness mmWeight kg/m²Modulus of elasticity (N/mm²)Bending strength (N/mm²)
    alongacrossalongacross
Magnoplan Universal

2000 x 5200

21

11.4

2800

6600

26

48

Test according to EN310. Subject to design modifications. Attention Reference values – these properties are not guaranteed.

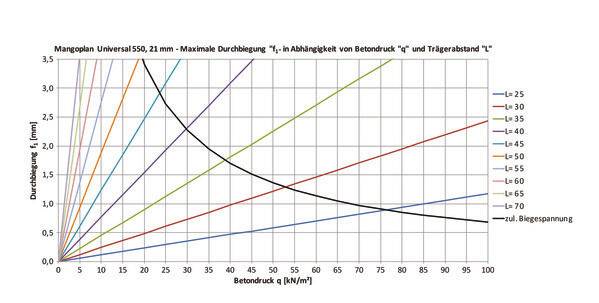

Diagram for bending estimation

Technical advice: Area load calculated from pure concrete pressure without safety coefficients. Diagram applies to a 4-field beam, deflection in the outfield. Permissible bending stress = calculated with load safety factor 1.5 / load duration 0.9 / material safety 1.3. The technical data are mean values which may vary due to the natural fluctuations of the raw material wood.
