Magnoplan Special 680 – shuttering board with highly abrasion-resistant phenolic resin film coating

Magnoplan Special 680 is suitable for smooth, jointless concrete surfaces in accordance with DIN 18202/3, line 6. It will produce matt, even concrete surfaces with a medium to high number of reuses, primarily in precast concrete plants.

An overview of the main properties and benefits of our “Magnoplan Special 680” shuttering board:

  • Supersize formwork panel made of 3-ply laminboard based on DIN 68791
  • Highly abrasion-resistant, phenolic resin film coating 680 g/m² on each side
  • Sealed edges

Technical dataDimensions in mmThickness mmWeight kg/m²Modulus of elasticity (N/mm²)Bending strength (N/mm²)
    alongacrossalongacross
Magnoplan Special 680

2000 x 5200

27

14.2

1900

7300

16

51

Test according to EN310. Subject to design modifications Attention Reference values – these properties are not guaranteed.

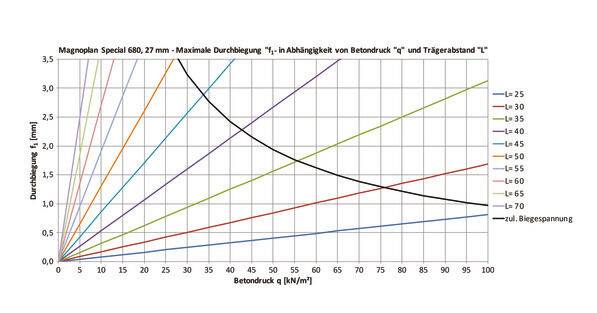

Diagram for bending estimation

Technical advice: Area load calculated from pure concrete pressure without safety coefficients. Diagram applies to a 4-field beam, deflection in the outfield. Permissible bending stress = calculated with load safety factor 1.5 / load duration 0.9 / material  safety 1.3. The technical data are mean values which may vary due to the natural fluctuations of the raw material wood.


Westafill joint tape

Single-sided self-adhesive polyethylene-based joint tape approx. 19 mm wide and 3 mm thick. It is used to seal the joints between formwork panels. The roll length of the Westafill joint tape is 10 m.

Westafill special filler resin

The high-quality two-component epoxy resin filler is suitable for shuttering construction, particularly for use with all film-coated plywood formwork panels from Westag.

Westafill special lacquer

The ready-to-use single-component paint offers a high degree of abrasion resistance and impact resistance, as well as good resistance to chemicals. It is used as edge protection for shuttering panels made of wooden composites.
