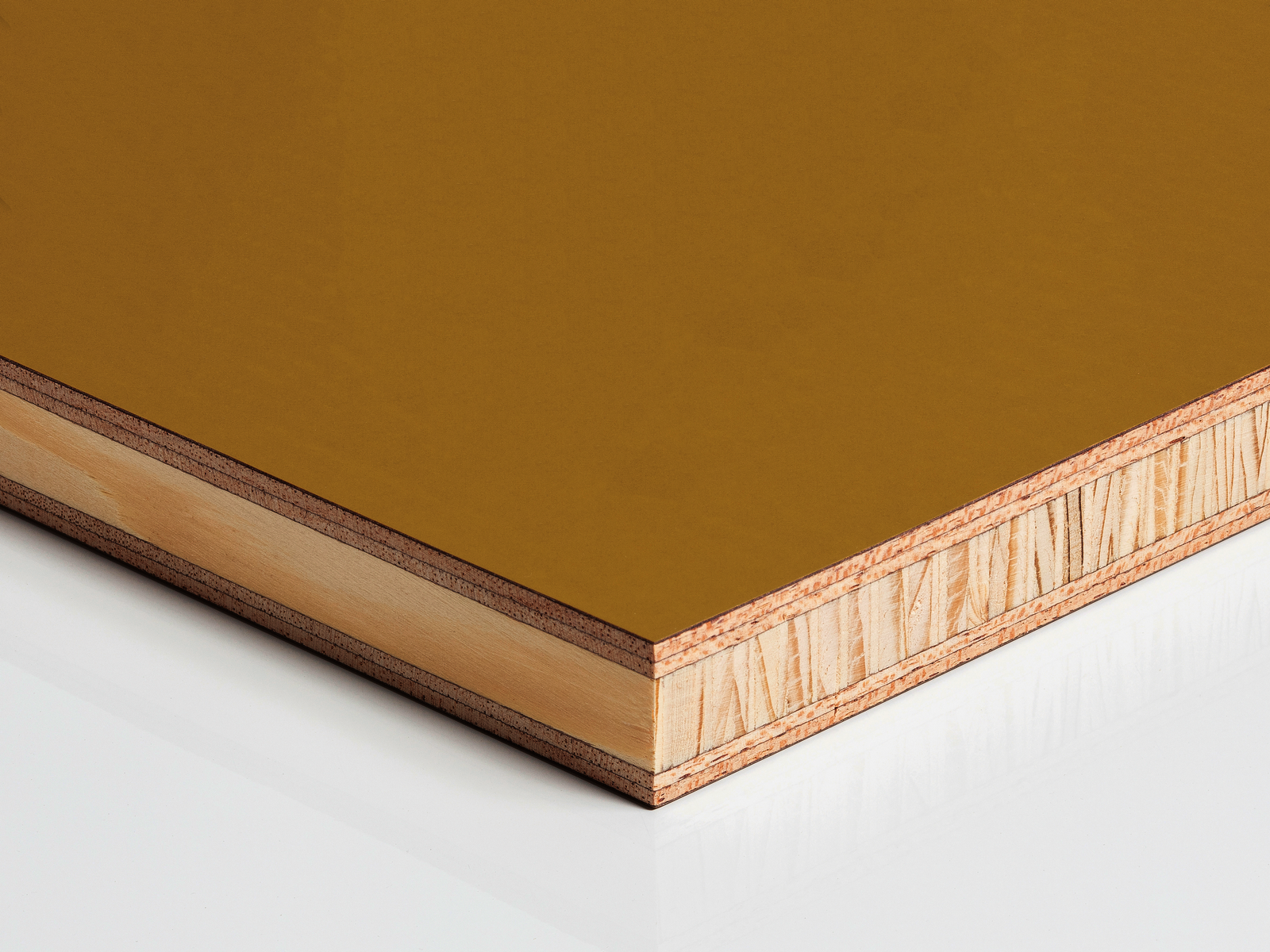

Magnoplan DUO 360/550 BE is suitable for smooth, jointless concrete surfaces in accordance with DIN 18202/3, line 6. It will produce matt, even concrete surfaces with medium to high frequency of reuse, primarily in precast concrete plants but also on building sites. The panel can be subjected to both longitudinal and transverse loads.
An overview of the main properties and benefits of our “Magnoplan DUO 360/550 BE” shuttering board:
| Technical data | Dimensions in mm | Thickness mm | Weight kg/m² | Modulus of elasticity (N/mm²) | Bending strength (N/mm²) | ||
|---|---|---|---|---|---|---|---|
| along | across | along | across | ||||
| Magnoplan DUO 360/550 BE | 2000 x 5200 | 21 | 11.2 | 3600
| 3900
| 34 | 33 |
Test according to EN310. Subject to design modifications. Attention Reference values – these properties are not guaranteed.

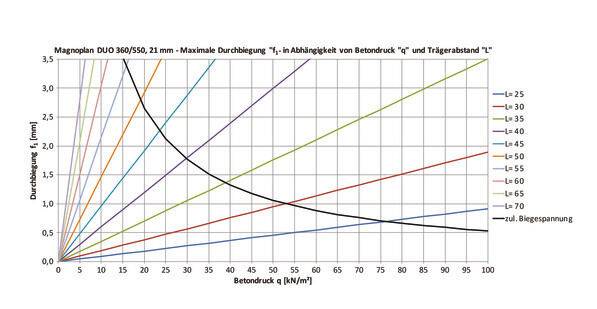

Technical advice: Area load calculated from pure concrete pressure without safety coefficients. Diagram applies to a 4-field beam, deflection in the outfield. Permissible bending stress = calculated with load safety factor 1.5 / load duration 0.9 / material safety 1.3. The technical data are mean values which may vary due to the natural fluctuations of the raw material wood.
