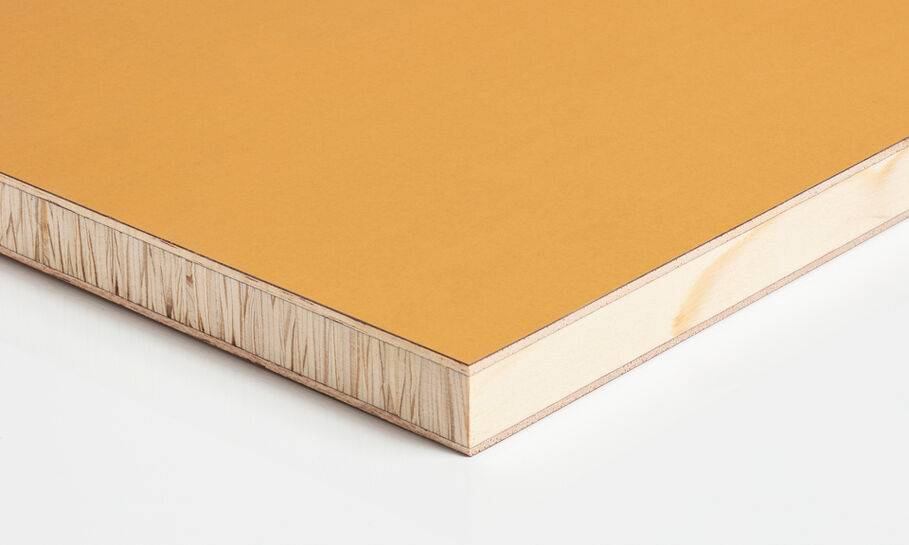

Magnoplan 450 BE – shuttering board with three-ply laminboard structure

Magnoplan 450 BE is suitable for smooth, jointless concrete surfaces in accordance with DIN 18202/3, line 6. It results in matt concrete surfaces with a medium number of reuses. The panel can be subjected to both longitudinal and transverse loads.

An overview of the main properties and benefits of our “Magnoplan 450 BE” shuttering board:

  • Supersize formwork panel made of 3-ply laminboard based on DIN 68791
  • Phenolic resin film coating 450 g/m² on each side
  • Sealed edges

Technical dataDimensions in mmThickness mmWeight kg/m²Modulus of elasticity (N/mm²)Bending strength (N/mm²)
Magnoplan 450 BE

2000 x 5200







Test according to EN310. Subject to design modifications. Attention Reference values – these properties are not guaranteed.

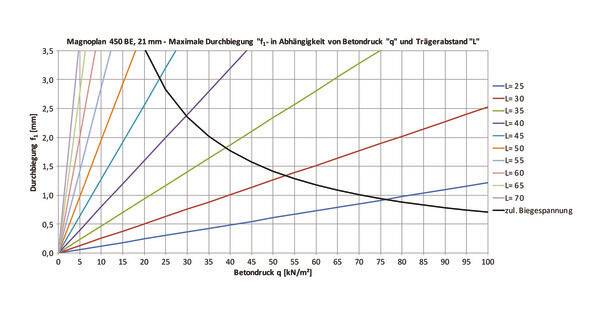

Diagram for bending estimation

Technical advice: Area load calculated from pure concrete pressure without safety coefficients. Diagram applies to a 4-field beam, deflection in the outfield. Permissible bending stress = calculated with load safety factor 1.5 / load duration 0.9 / material safety 1.3. The technical data are mean values which may vary due to the natural fluctuations of the raw material wood.
