Westaboard 360 BE is suitable for smooth, jointless concrete surfaces in accordance with DIN 18202/3, line 5. It will produce matt surfaces with a slightly higher number of reuses.
An overview of the main properties and benefits of our “Westaboard 360 BE” shuttering board:
| Technical data | Dimensions in mm | Thickness mm | Weight kg/m² | Modulus of elasticity (N/mm²) | Bending strength (N/mm²) | ||
|---|---|---|---|---|---|---|---|
| along | across | along | across | ||||
| Westaboard 360 BE | 2000 x 5200 | 21 | 10.4 | 3000 | 6200 | 24 | 41 |
Test according to EN310. Subject to design modifications Attention Reference values – these properties are not guaranteed.

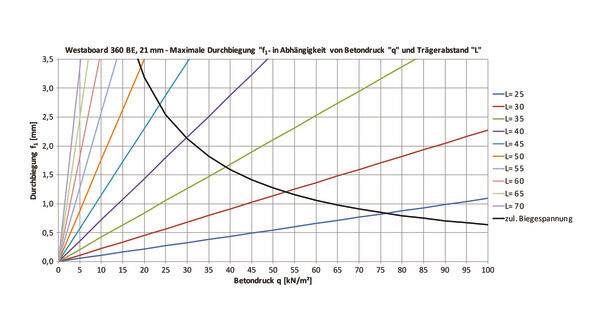

Technical advice: Area load calculated from pure concrete pressure without safety coefficients. Diagram applies to a 4-field beam, deflection in the outfield. Permissible bending stress = calculated with load safety factor 1.5 / load duration 0.9 / material safety 1.3. The technical data are mean values which may vary due to the natural fluctuations of the raw material wood.
