Magnoplan S 550 – shuttering board for matt surfaces with a medium number of reuses

Magnoplan S 550 is suitable for smooth, jointless concrete surfaces in accordance with DIN 18202/3, line 5–6. It will produce matt concrete surfaces with a medium number of reuses.

An overview of the main properties and benefits of our “Magnoplan S 550” shuttering board:

  • Supersize formwork panel made of blockboard based on DIN 68791
  • Minor block markings possible
  • Phenolic resin film coating
  • 550 g/m² on each side
  • Sealed edges

Technical dataDimensions in mmThickness mmWeight kg/m²Modulus of elasticity (N/mm²)Bending strength (N/mm²)
    alongacrossalongacross
Magnoplan S 550

2000 x 5200

21

10.6

3000

6200

24

41

Test according to EN310. Subject to design modifications. Attention Reference values – these properties are not guaranteed.

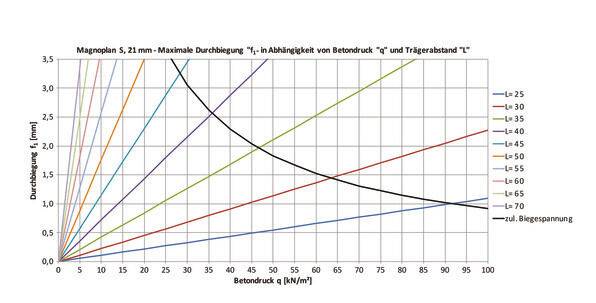

Diagram for bending estimation

Technical advice: Area load calculated from pure concrete pressure without safety coefficients. Diagram applies to a 4-field beam, deflection in the outfield. Permissible bending stress = calculated with load safety factor 1.5 / load duration 0.9 / material safety 1.3. The technical data are mean values which may vary due to the natural fluctuations of the raw material wood.
