Bonaboard 260 BE – cost-effective shuttering board with three-ply blockboard structure

Bonaboard 260 BE is suitable for smooth, jointless concrete surfaces in accordance with DIN 18202/3, line 5. It will produce matt surfaces with a limited number of reuses.

An overview of the main properties and benefits of our “Bonaboard 260 BE” shuttering board:

  • Lowest-cost supersize formwork panel made of 3-ply blockboard based on DIN 68791
  • Block markings possible following moisture absorption
  • Phenolic resin film coating 260 g/m²
  • Sealed edges

Technical dataDimensions in mmThickness mmWeight kg/m²Modulus of elasticity (N/mm²)Bending strength (N/mm²)
    alongacrossalongacross
Bonaboard 260 BE

2000 x 5200

21

10

3000

6200

24

41

Tolerances in accordance with DIN 68791 Subject to design modifications Attention Reference values – these properties are not guaranteed.

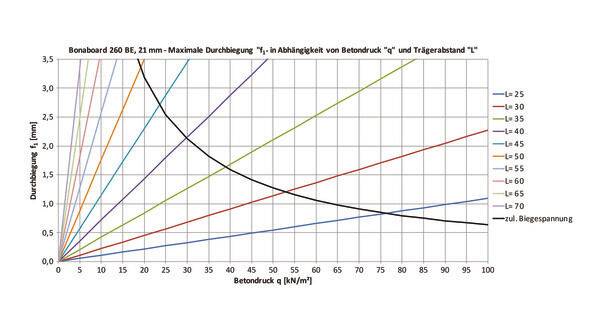

Diagram for bending estimation

Technical advice: Area load calculated from pure concrete pressure without safety coefficients. Diagram applies to a 4-field beam, deflection in the outfield. Permissible bending stress = calculated with load safety factor 1.5 / load duration 0.9 / material safety 1.3. The technical data are mean values which may vary due to the natural fluctuations of the raw material wood.
