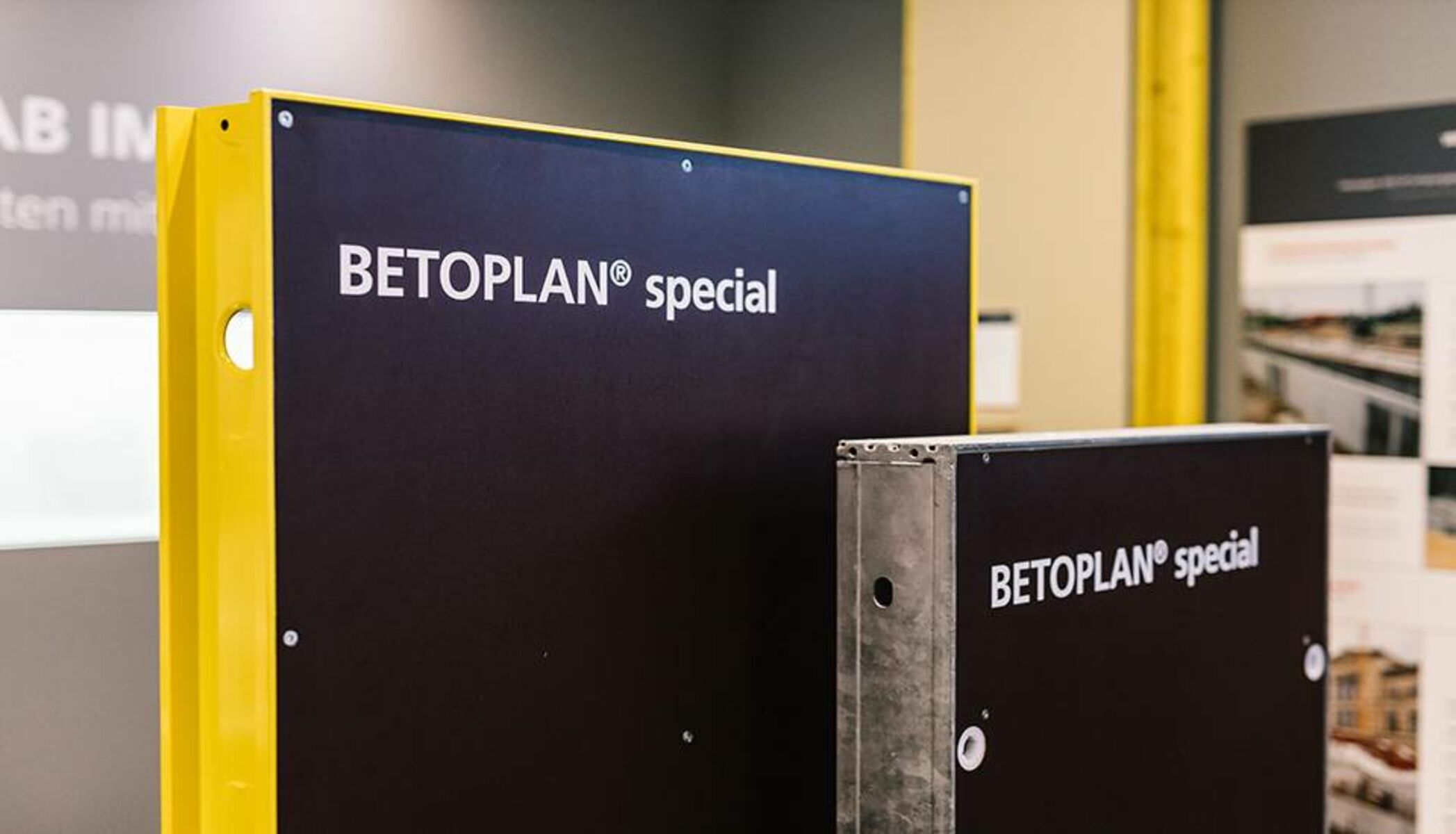

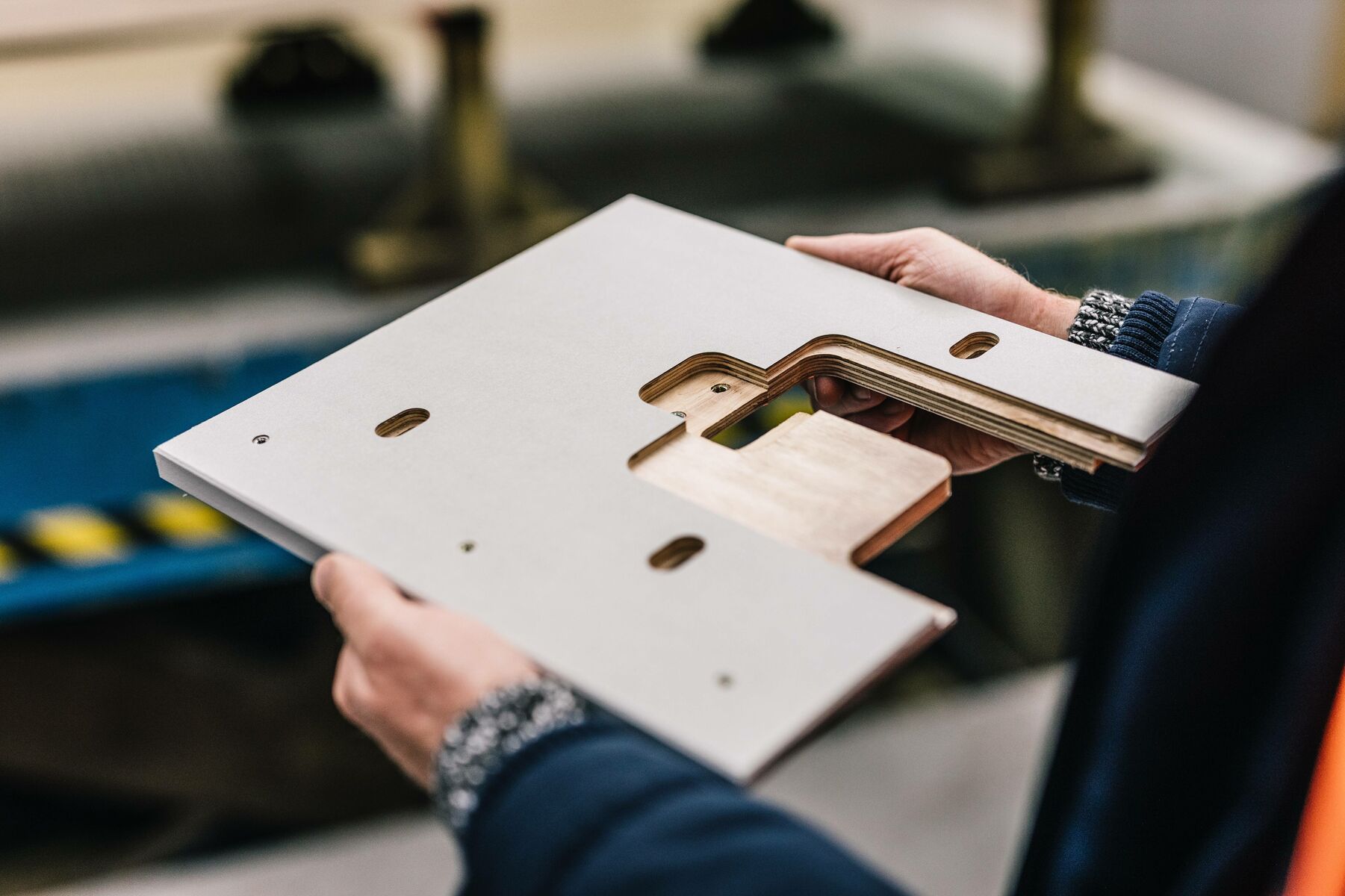

Westag AG offers a high-quality range of panels for various frame formwork systems. These include a variety of plywood constructions, cut-to-size, drilling, recesses for anchors, and film coatings of 450 g/m2. Custom-cut panels can also be supplied.
| Technical data | Dimensions in mm | Thickness mm | Weight kg/m² | Modulus of elasticity (N/mm²) | Bending strength (N/mm²) | ||
|---|---|---|---|---|---|---|---|
| along | across | along | across | ||||
Betoplan Special | Fixed dimensions available on request | 15 18 21 | 9.4 11.2 13.1 | 9300 7400 7500 | 7600 7200 6500 | 84 61 56 | 67 55 46 |
Test according to EN310. Tolerances in accordance with DIN 68791. Subject to design modifications Attention Reference values – these properties are not guaranteed.
The technical data are mean values which may vary due to the natural fluctuations of the raw material wood.
