Decosieb

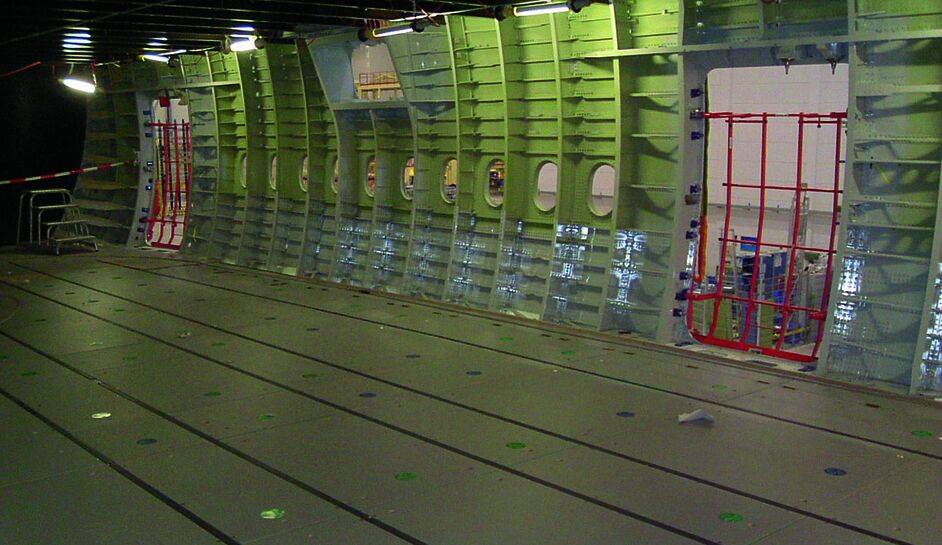

The industrial floor panel “Decosieb” is based on high-grade veneered plywood. It has a melamine coating with decorative character and is manufactured as a dissipative version if required. It is suitable for demanding platform building and assembly platforms among other applications.

Decosieb

The industrial floor panel “Decosieb” is a decorative screen print panel made of waterproof glued veneered plywood. The face side is equipped with a fine decor and the reverse with a balancer.

Note: Project-related cutting to size and CNC machining possible!

Overview of the technical data for the industrial panel “Decosieb”:

Fire behaviour DIN EN 13501-1 Bfl -s1 (floor covering) test report no. 23 0004741-2 MPA-NRW
Test certificate no. 12 6236-S/10 MPI
Abrasion resistance DIN EN 13 329 AC 4
Screen print surface with anti-slip property DIN 51 130 Anti-slip class R11
Optional: Dissipative capacity of surface DIN EN 61340-4-1 10^6 – 10^9 Ohm test certificate no. ST-12-05-31-01

DIN EN 61340-5-1

Persons/footwear/floor system

Rg < 3.5 * 10^7 Ohm fulfilled with ESD

Footwear (RSch = 7.0 * 10^6 Ohm)

Test certificate no. ST-12-05-31-01

The requirements for classification in terms of electrostatic behaviour as “dissipative industrial flooring” (DIF), ambient condition class 1 (23° ±2°C; rel. air humidity 12% ±2%) are fulfilled.

Formats: max. 2.96x1.28cm

Decosieb

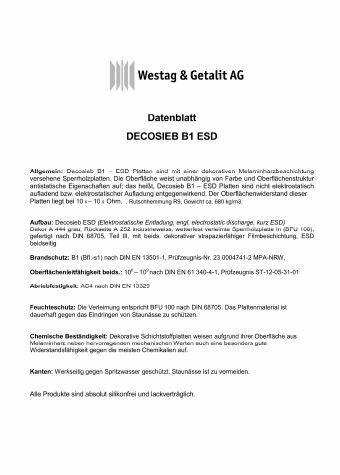

Download

Sample order
