New frame structure

When it comes to installing door frames, a few millimetres in the wall opening can quickly create a lot of additional work. That’s why we created our new frame structure – for extra fitting allowance with the same, tried-and-tested stability.

New frame structure

1 Fitting allowance
2 Rebate width
3 Seal
4 Jamb plate
5 Screw-on hinge slot

Optimised rebate geometry

  • Fitting allowance increased by up to 4 mm by adjusting the rebate width from 11 to 13 mm
  • Seal mounted deeper on the door surface for lower transparency and permeability
  • Sturdy jamb plate: high durability and rigidity thanks to 25 mm thickness

Built-in screw-on hinge slot for approved door frames

  • Bevelled shape for optimised mounting
  • Higher strength: suitable for doors up to 100 kg

The tried-and-tested, built-in cup hinge slot is also available exclusively as an optimised frame structure with additional fitting allowance.



Wooden lining frames

Wooden lining frames in all conventional wall thicknesses, with architrave widths up to 100 mm and in a wide range of designs, from traditional to modern.



REBATED

FLUSH CLOSING





Wooden frame, standard, rounded (Type SL)
Suitable for doors with rectangular or round edges. Also available with architrave widths of 50, 65, 70, 80, 90 and 100 mm for Getalit, Portalit, Dekorit and Westalack.

Wooden frame, slightly rounded (Type SE)
With small radius – for both rectangular and round door edges. Also available with architrave widths of 50, 65, 70, 80, 90 and 100 mm for Getalit, Portalit and Westalack.

Wooden frame, rectangular edges (Type EK)
Straight-edged variant especially suited to use with rectangular edges. Also available with architrave widths of 50, 65, 70, 80, 90 and 100 mm for FENIX and Getalit.

Wooden frame P1, profiled (Type P1)
Profile frame suitable for use with chalet doors like ‘Provence’. Available in Westalack Classic White finish (sim. to RAL 9010), for Westalack Premium.

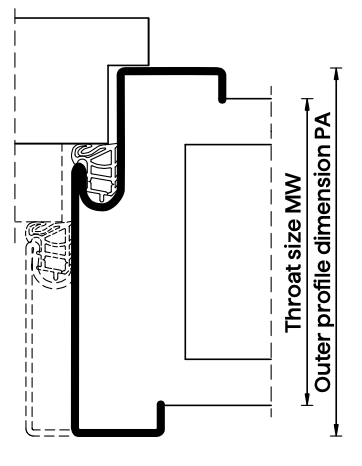

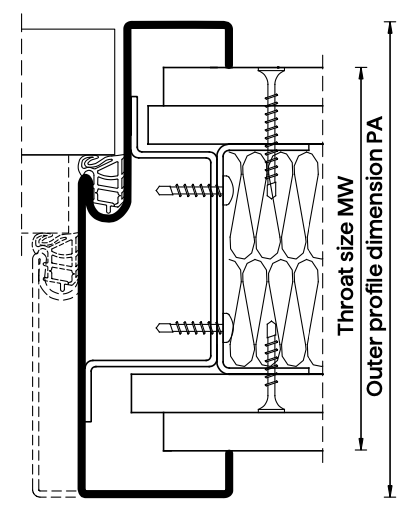

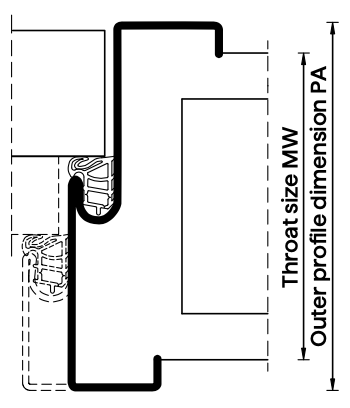

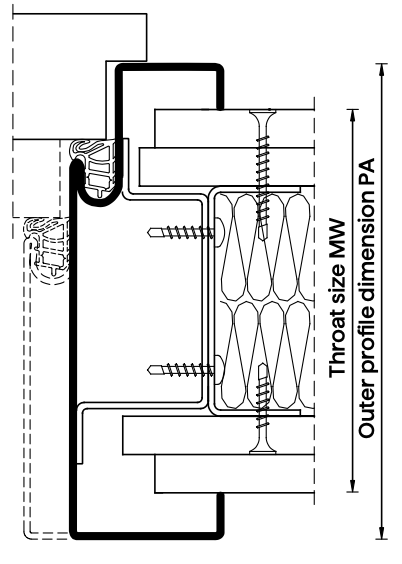

Calculating frame dimensions

How big does your frame need to be? Exactly the right size – every time. The table below will help you calculate the right size for your order.

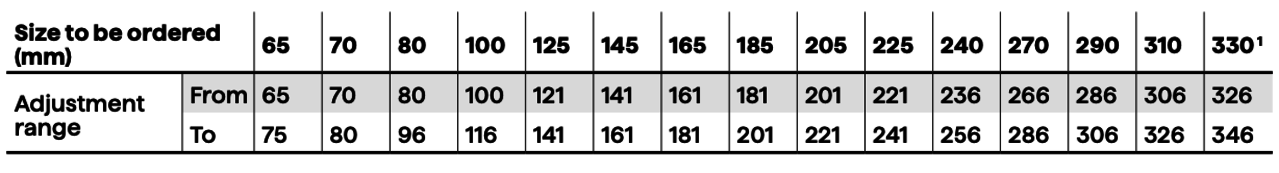

Rebated Closing

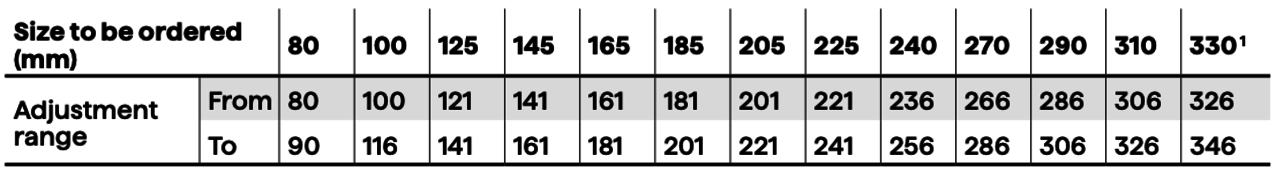

Flush closing

¹ Available for wall thicknesses up to 590 mm

Block frames

Wooden block frames offer the perfect designer twist for a variety of profiles and species of wood, and can also solve a wide range of wall issues. The available options range from premium-quality solid-wood structures for perfect, wall-flush variants to very simple designs for prefab renovations. In addition to the designs shown here, custom options are often also available as a tailor-made solution for specific building requirements.

  • Types

    BR 45
    Block frame, cross section approx. 45 x 80 mm
    Installation in front of wall (in-wall available on request, depending on function) for door thicknesses approx. 40 – 45 mm with standard rebate

    Functions/constructions:

    • Fire prevention T30 (EI30) – Type 40/43
    • Smoke protection RS (S200) – Type 40/43
    • Burglary prevention RC2 – Type 40/43
    • Soundproofing SK27/1, SK32/2, SK37/3 – Type 40/43
    • Tubular chipboard – Type 40
    • Solid chipboard core – Type 40





    BR 68
    Block frame, cross section approx. 68 x 80/90 mm In-wall installation approx. 68 x 80 mm
    Installation in front of wall approx. 68 x 90 mm
    For door thicknesses approx. 40 – 73 mm with range of rebate configurations

    Functions/ constructions

    • Fire prevention T30 (EI30) – Type 40/43, 50, 65
    • Smoke protection RS (S200) – Type 40/43, 50, 65
    • Burglary prevention RC2, RC3 – Type 40/43, 50, 65
    • Soundproofing SK27/1, SK32/2, SK37/3 – Type 40/43, 50, 65
    • Tubular chipboard – Type 40
    • Solid chipboard core – Type 40, 50



    BR 75
    Block frame, cross section approx. 75 x 80/95 mm In-wall installation approx. 75 x 80 mm
    Installation in front of wall approx. 75 x 95 mm
    For door thicknesses approx. 40 – 67 mm with range of rebate configurations

    Functions/ constructions

    • Fire prevention T30 (EI30) – Type 40/43, 50, 65
    • Smoke protection RS (S200) – Type 40/43, 50, 65
    • Burglary prevention RC2, RC3 – Type 40/43, 50, 65/71
    • Soundproofing SK37/3, SK40/3,5, SK42/4 – Type 40/43, 50, 65/71



    BR 95
    Block frame, cross section approx. 95 x 80/95 mm In-wall installation approx. 95 x 80 mm
    Installation in front of wall approx. 95 x 95 mm
    For door thicknesses approx. 65 – 67 mm with range of rebate configurations

    Functions/ constructions

    • Fire prevention T30 (EI30) – Type 65
    • Smoke protection RS (S200) – Type 65
    • Burglary prevention RC2, RC3 – Type 65
    • Soundproofing SK37/3



    BR 78
    Block frame, cross section approx. 78 x 55 mm
    Primarily for use in domestic or simple property applications with option for fanlights and glazed side panels
    In-wall installation approx. 78 x 55 mm for door thicknesses approx. 40 mm with standard rebate

    Functions/ constructions

    • Soundproofing SK27/1 – Type 40
    • Tubular chipboard – Type 40
    • Solid chipboard core – Type 40

Steel frames

With their highly sturdy construction and excellent durability, steel frames are the perfect choice for many public spaces, especially combined with wooded doors. The frame’s service life can even be significantly enhanced with details such as an increased sheet thickness (2.0 instead of 1.5 mm) and reinforcement in the lockbolt and latch areas – particularly useful for barracks, schools and other public buildings.

Galvanized/protection-primed frames are either coated on site or powder-coated prior to delivery so your construction can move onto the next phase much quicker and more easily. Depending on your technical and visual requirements, our V2A and V4A stainless steel frames may also present a useful alternative.
