Edges

The role of edges is not to be underestimated in determining whether a door fulfils all the functional and aesthetic requirements. The best combination of frame construction and door edge will depend on the usage frequency, application area and design concept.

ProEdge

Our new ProEdge edge variants with thickness from 2 mm expand the range of shock resistance frame constructions and offer an even higher degree of edge impact resistance. The resistance class E according to RAL-GZ 426 ensures additional robustness and longevity, making it ideal for challenging applications.

  • Edge impact resistance class E according to RAL-GZ 426 is guaranteed in all standard rebate configurations with Homapal, FENIX DOORS, TopLab® DOORS and Getalit
  • The edges with thicknesses of 1 and 2 mm therefore meet a wide range of requirements and can be used for a variety of applications
  • An optional curved edge minimises the risk of injury, for example in nurseries and retirement homes, according to accident prevention regulations/statutory accident insurance
  • Surfaces are particularly robust, hygienic, impact resistant and resistant to dirt
  • 18 colours to choose from, including FENIX NTM colours from the FENIX DOORS collection
  • All functions like fire protection and soundproofing can be combined with these edges

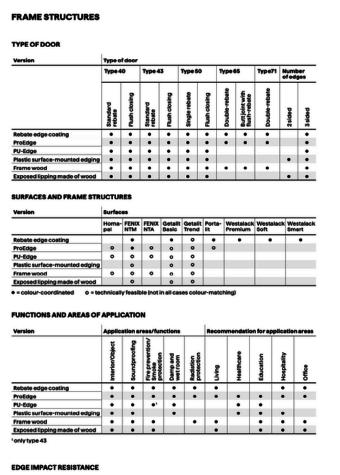

Additional frame structures

Rebate edge coating

  • For door elements without visible joints
  • Available with matching decors for many surfaces, door leaf thicknesses and rebate configurations
  • Especially suitable for living spaces and low-wear public spaces

PU-Edge

  • Moisture- and impact-resistant
  • Non-porous, biologically sound design for high hygiene standards
  • Standard range with six colours, additional colours (RAL, NCS) possible
  • Suitable for heavy use, e.g. in hospitals

Plastic surface-mounted edging

  • Highly stable and moisture-resistant, repair possible
  • Three standard colours, additional selection of single colours available
  • Especially suitable for wet and humid rooms, particularly in public spaces

Frame wood

  • High-quality solid wood construction visually accentuates the technology of the door structure
  • Refinishing possible
  • Six types of wood: maple, beech, oak, ash, light and red hardwoods

Exposed lipping made of wood

  • Uniform, elegant look in solid wood
  • Easy to refinish, if necessary
  • Six types of wood: maple, beech, oak, ash, light and red hardwoods

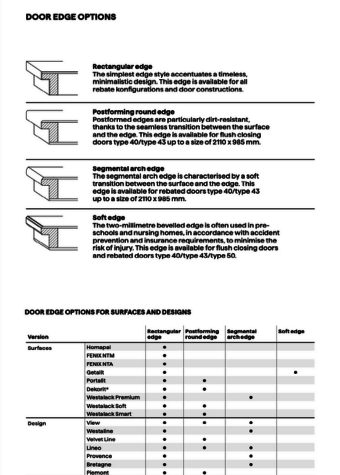

Door edge options

Rectangular edge
The simplest edge style accentuates a timeless, minimalistic design. This edge is available for all rebate konfigurations and door constructions.

Postforming round edge
Postformed edges are particularly dirt-resistant, thanks to the seamless transition between the surface and the edge. This edge is available for flush closing doors type 40/type 43 up to a size of 2110 x 985 mm.

Segmental arch edge
The segmental arch edge is characterised by a soft transition between the surface and the edge. This edge is available for rebated doors type 40/type 43 up to a size of 2110 x 985 mm.

Soft edge
The two-millimetre bevelled edge is often used in pre- schools and nursing homes, in accordance with accident prevention and insurance requirements, to minimise the risk of injury. This edge is available for flush closing doors and rebated doors type.

Downloads
