Door sets and door constructions

A wide range of options are available when it comes to combining door leaves and frame variants in the various door thicknesses and rebate configurations on offer. Choosing the right one requires consideration of the functions of the door sets themselves, but also the technical requirements on site and, last but not least, the aesthetic expectations.

Door sets

For some functions, the door leaves and frames always need to be ordered from the same manufacturer. In addition to the wooden lining frames shown here, all the Types listed below are also available with a steel frame or a block frame.

TYPE 40/TYPE 43

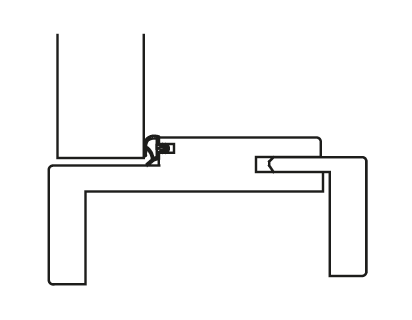

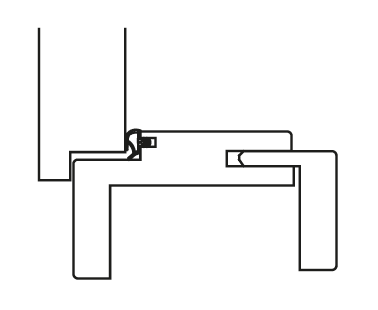

Door set Type 40/Type 43, Door thicknesses approx. 40-45 mm with wooden lining frame, standard rebate

TYPE 50

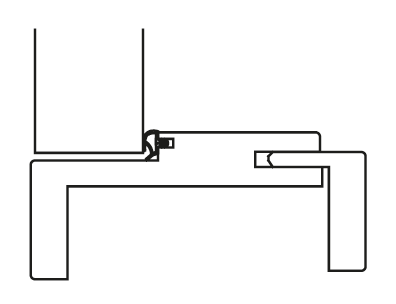

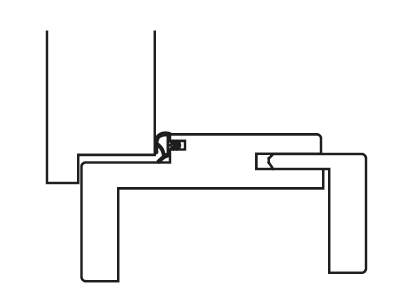

Door set Type 50, Door thicknesses approx. 50-52 mm with wooden lining frame, single rebate

TYPE 65/TYPE 71

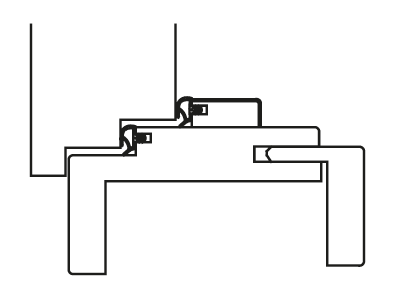

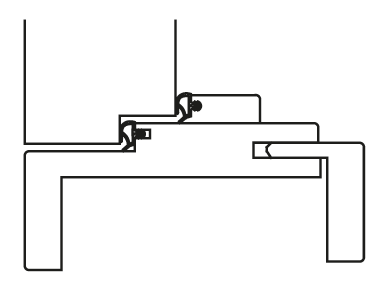

Door set Type 65/71, Door thicknesses approx. 67-73 mm with wooden lining frame, double-rebate

TYPE 40/TYPE 43
Door set Type 40/Type 43, Door thicknesses approx. 40-45 mm With wooden lining frame, flush closing

TYPE 50
Door set Type 50, Door thicknesses approx. 50-52 mm With wooden lining frame, flush closing

TYPE 65
Door set Type 65, Door thicknesses approx. 67-69 mm with wooden lining frame, but joint with flush-rabate

Door constructions

TYPE 40, DOOR THICKNESS APPROX. 40 MM

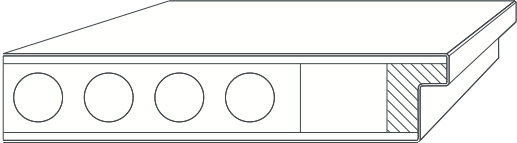

Tubular chipboard door Damp room door with tubular chipboard Wet room door with tubular chipboard

TYPE 43, DOOR THICKNESS APPROX. 43 MM
Fire prevention door T30 (EI30) Smoke protection door RS (S200) Burglary prevention door RC2 Soundproof door SK37/3 Wet room door

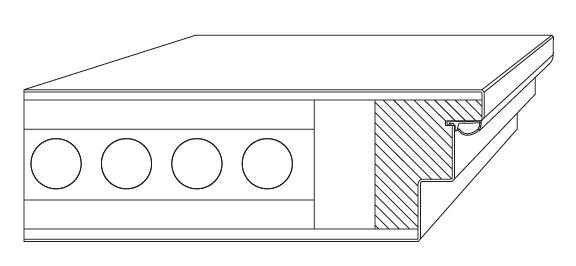

TYPE 65, DOOR THICKNESS APPROX. 67 MM

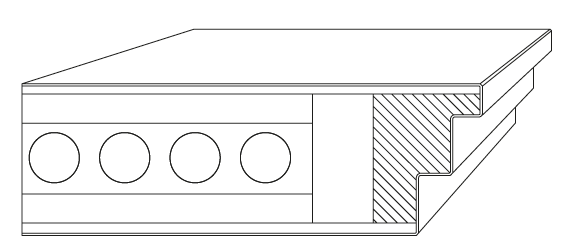

Fire prevention door T30 (EI30) Smoke protection door RS (S200) Burglary prevention door RC2 Burglary prevention door RC3 Soundproof door SK37/3

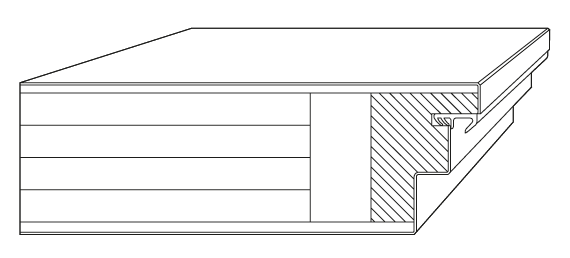

TYPE 71, DOOR THICKNESS APPROX. 71 MM
Burglary prevention door RC2 Burglary prevention door RC3 Soundproof door SK42/4

TYPE 40, DOOR THICKNESS APPROX. 40 MM

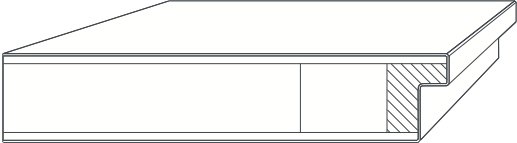

Solid chipboard door Fire prevention door T30 (EI30) Smoke protectiondoor RS (S200) Burglary prevention door RC2 Soundproof door SK27/1 Damp room door with solid chipboard Wet room door with solid chipboard

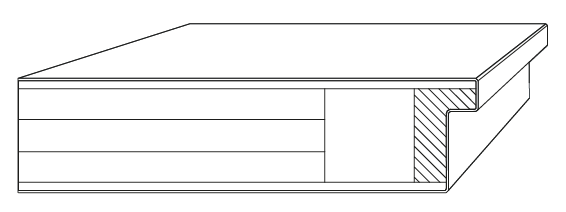

TYPE 50, DOOR THICKNESS APPROX. 50 MM
Fire prevention door T30 (EI30) Smoke protection door RS (S200) Burglary prevention door RC2 Soundproof door SK27/1

TYPE 65, DOOR THICKNESS APPROX. 67 MM

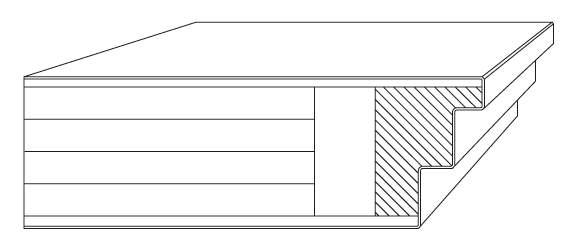

Fire prevention door T30 (EI30) Smoke protection door RS (S200) Burglary prevention door RC2 Burglary prevention door RC3 Soundproof door SK40/3.5

TYPE 40, DOOR THICKNESS APPROX. 40 MM

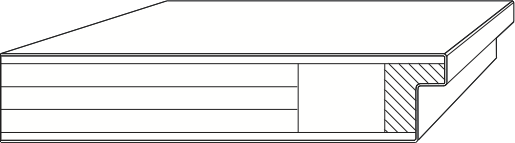

Burglary prevention door RC2 Soundproof door SK32/2

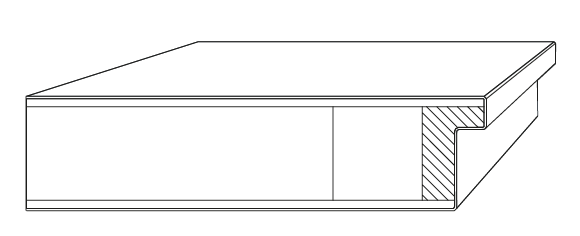

TYPE 50, DOOR THICKNESS APPROX. 50 MM
Fire prevention door T30 (EI30) Smoke protection door RS (S200) Burglary prevention door RC2 Soundproof door SK32/2 Soundproof door SK37/3

TYPE 65, DOOR THICKNESS APPROX. 67 MM
Fire prevention door T90 (EI90) Smoke protection door RS (S200) Burglary prevention door RC2 Soundproof door SK27/1 Soundproof door SK32/2
